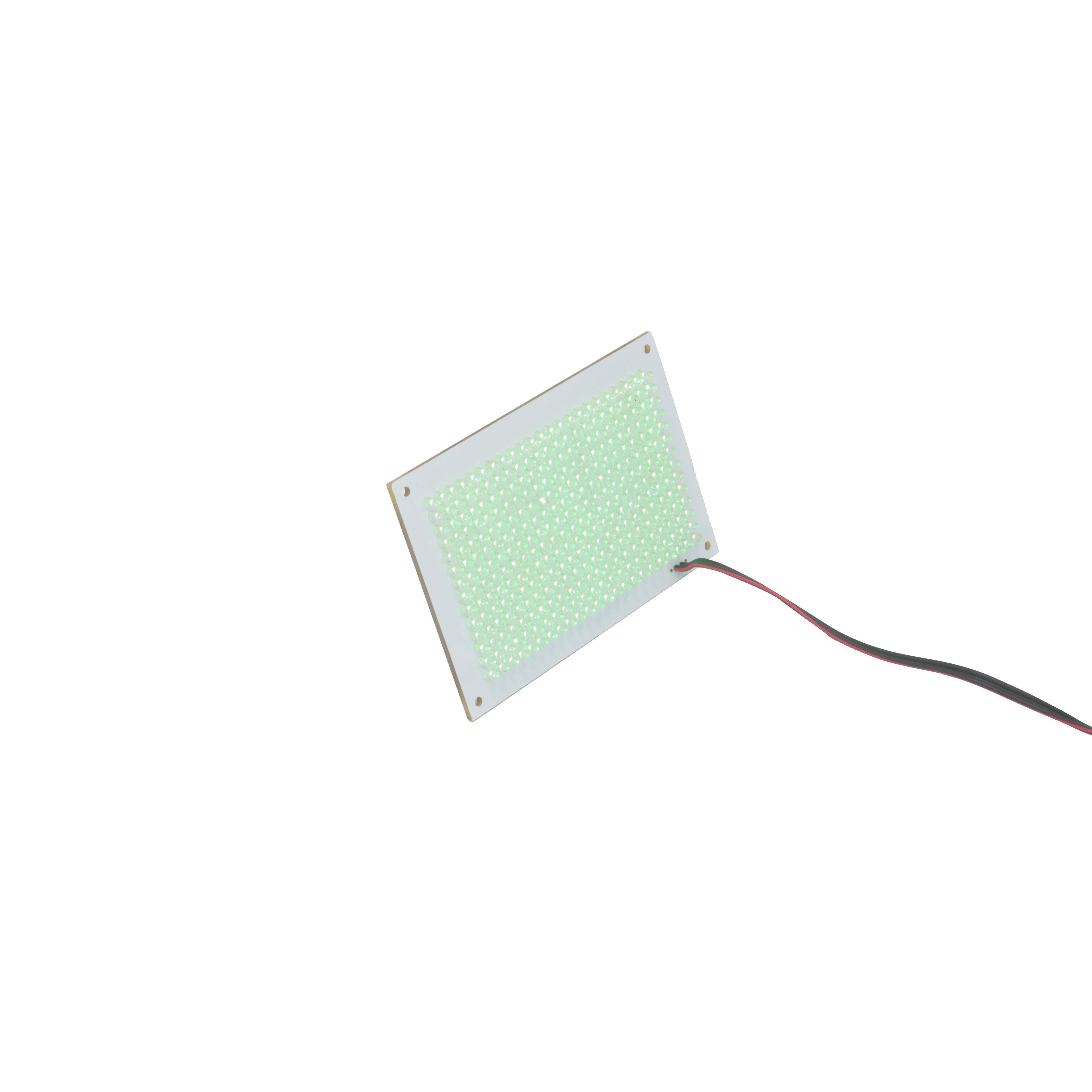

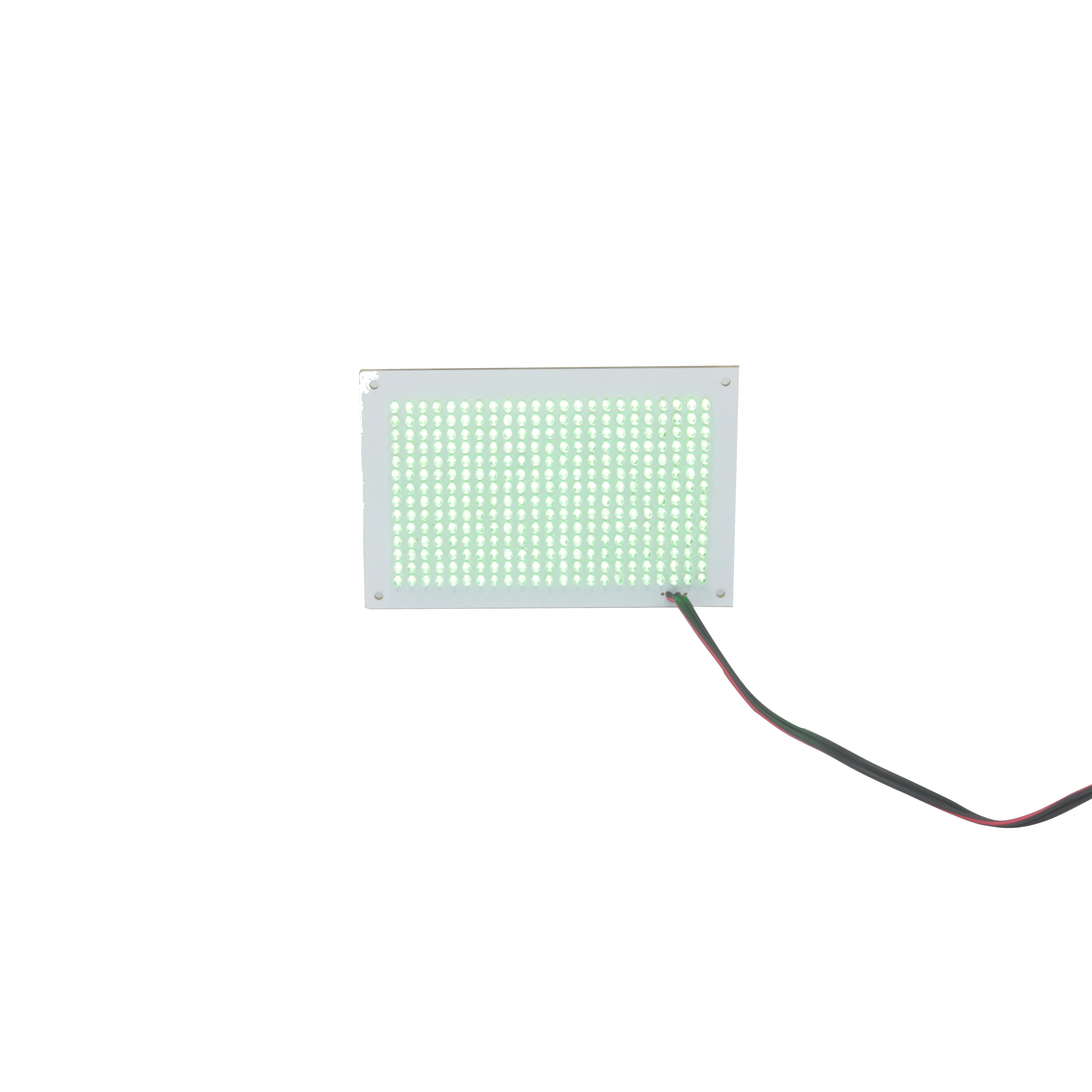

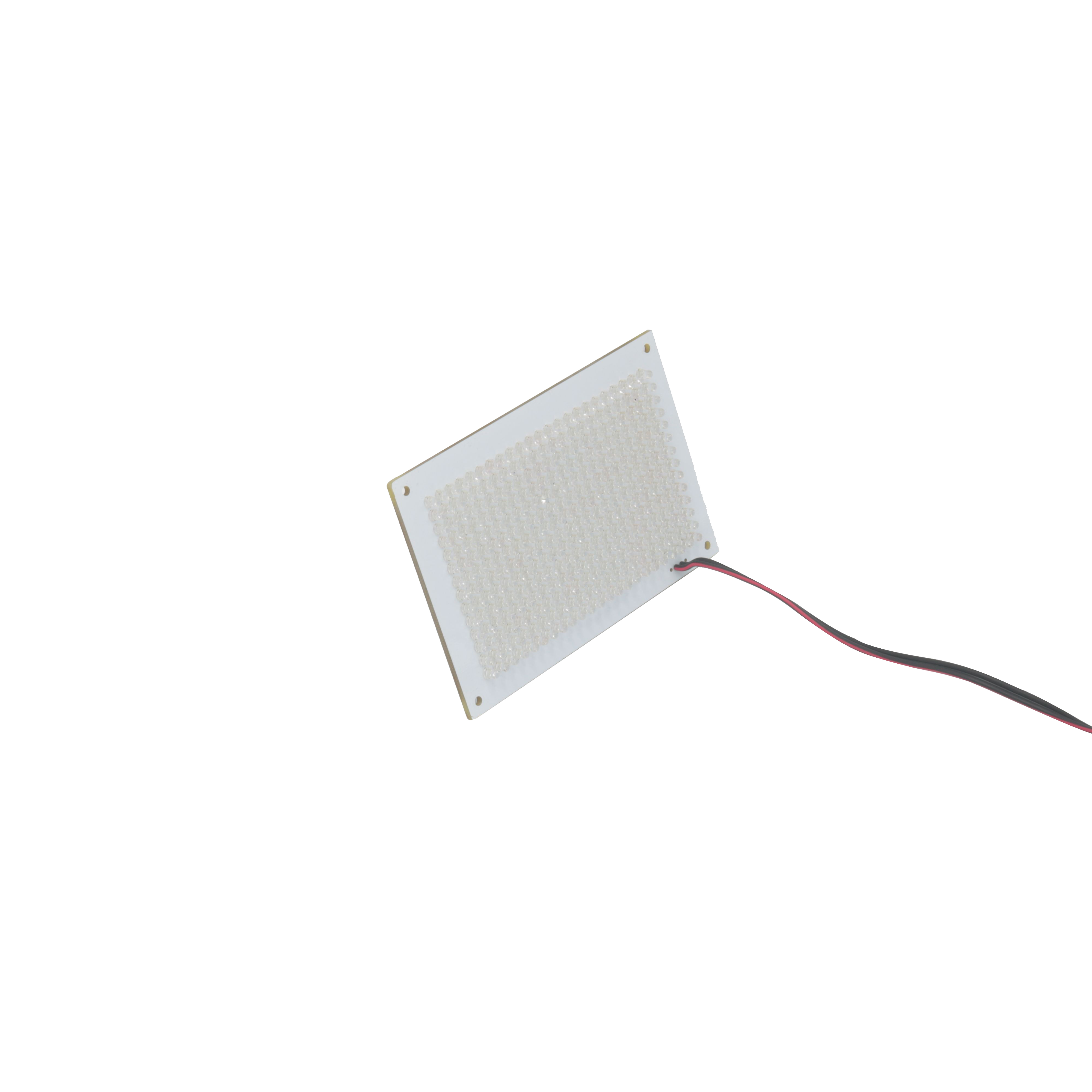

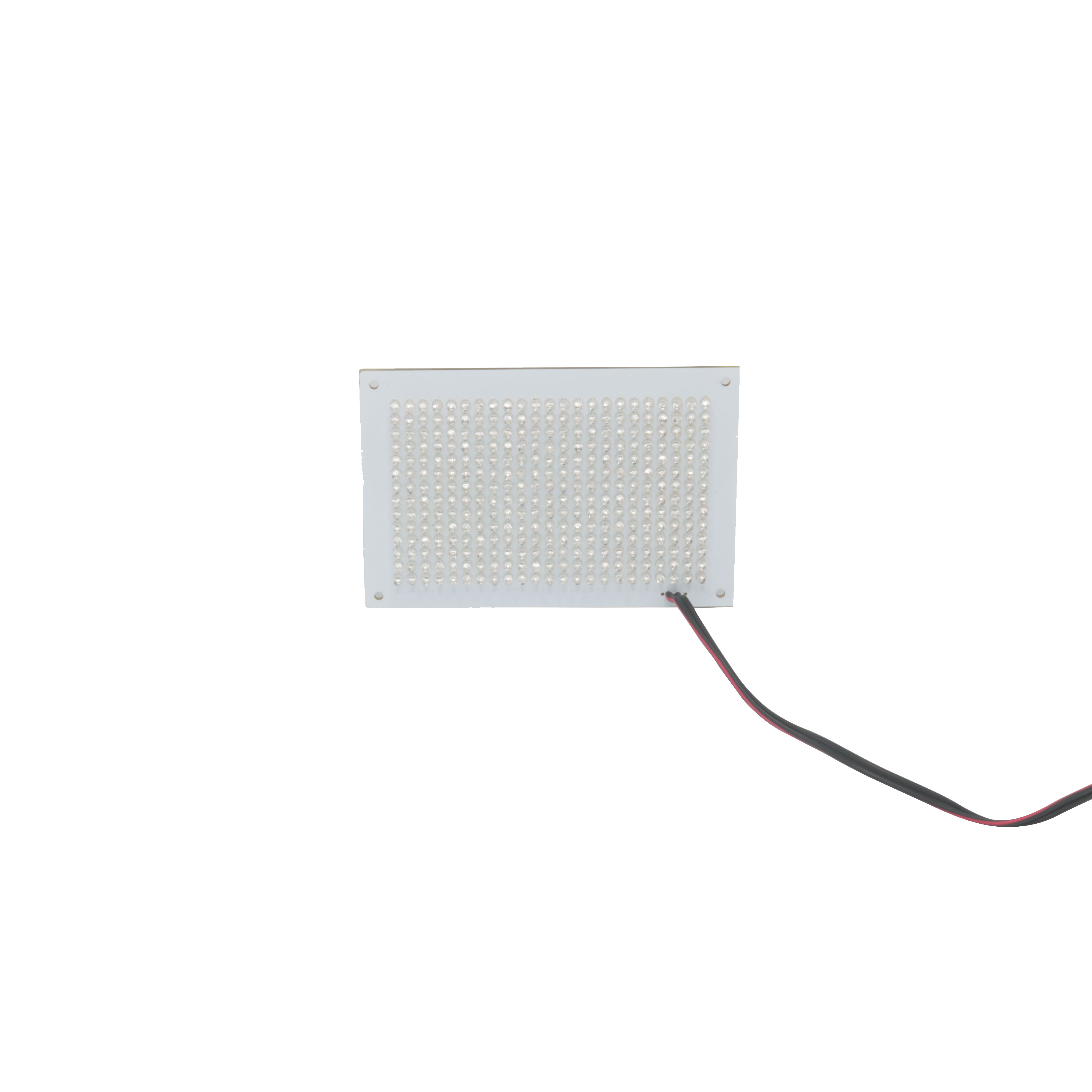

LUDRE BACKLIGHT L1423 MACHINE VISION IMAGE PROCESSING LIGHT

TECHNICAL SPECIFICATIONS
Light Color: Green
Lighting Angle: 20°
Light Intensity: 0.193 lm
Number of LEDs: 322
Input Voltage: 24 V
Input Current (15 µs): 0,67 A
Input Current (1 second): 0,43 A
Input Current (1 minute): 0,35 A
Input Current (continuous): 0,27 A
Dimensions: 12.2 cm x 7.7 cm x 2.5 cm
Stable Voltage Operation: No
Diffuser Option: Available

Backlighting is a crucial and widely used technique in image processing projects, offering various advantages in different applications. The following detailed text covers the areas of use and the scope of backlighting in image processing:

1. Object Recognition and Tracking: Backlighting becomes an ideal choice for image processing projects involving object recognition and tracking, enhancing the appearance and contrast. The created contrast assists in accurate spreading and distribution in a scene.

2. Quality Control in Manufacturing: Backlighting is commonly used for quality control purposes in manufacturing environments. It provides a clear view of surface defects, enabling effective categorization of defects in image processing.

3. Document and Text Analysis: Backlighting has proven to be beneficial for image processing projects involving document analysis or optical character recognition (OCR). It aids in the accurate extraction and interpretation of OCR cleansings by illuminating the text.

4. Biomedical Imaging: Biomedical imaging applications utilize backlighting for specific features in biological samples. This aids in the analysis of preserved cell structures, tissues, and other critical elements without distortion.

5. Edge Detection and Boundary Mapping: Backlighting is crucial in edge detection projects where precise outlining of the object's boundary is important. This technique provides more accurate boundary mapping by allowing individual freedoms.

6. Dimensional Measurement: Image processing processes involving dimensional measurement benefit from backlighting by providing a well-defined and high-contrast view. This helps in accurately displaying dimensions in the image.

7. Security and Surveillance: Backlighting is used in security and surveillance applications, especially to ensure visibility in low-light conditions. This is crucial for identifying and analyzing details related to security personnel.

8. Environmental Monitoring: For projects involving environmental monitoring, backlighting separates specific formations, such as terrain features or atmospheric conditions, in an image. This aids in the accurate analysis of data.

In summary, backlighting plays a significant role in meeting the diverse needs of image processing projects. Its ability to enhance appearance, contrast, and feature highlighting has made it an invaluable tool in various applications, ranging from production quality control to biomedical imaging.
