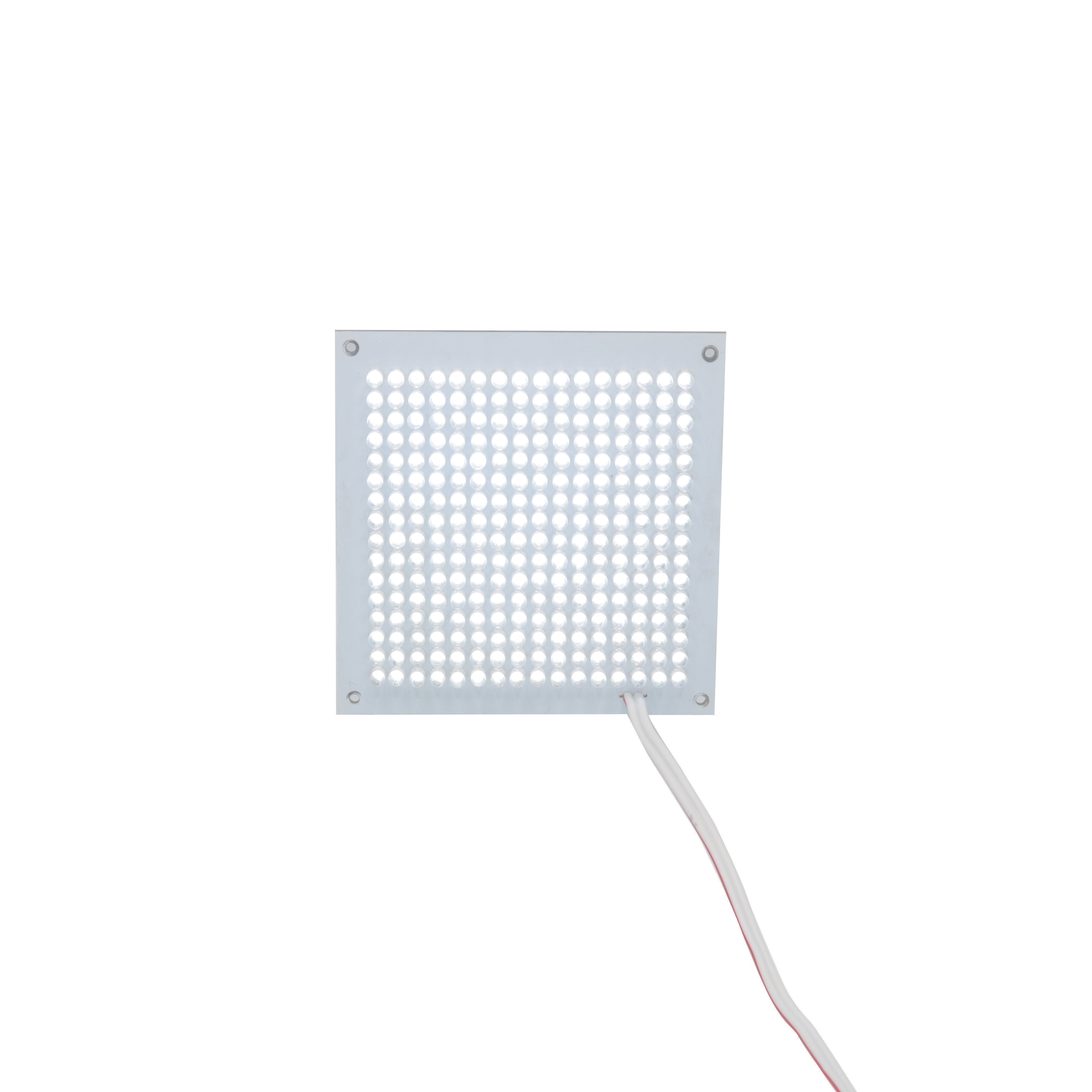

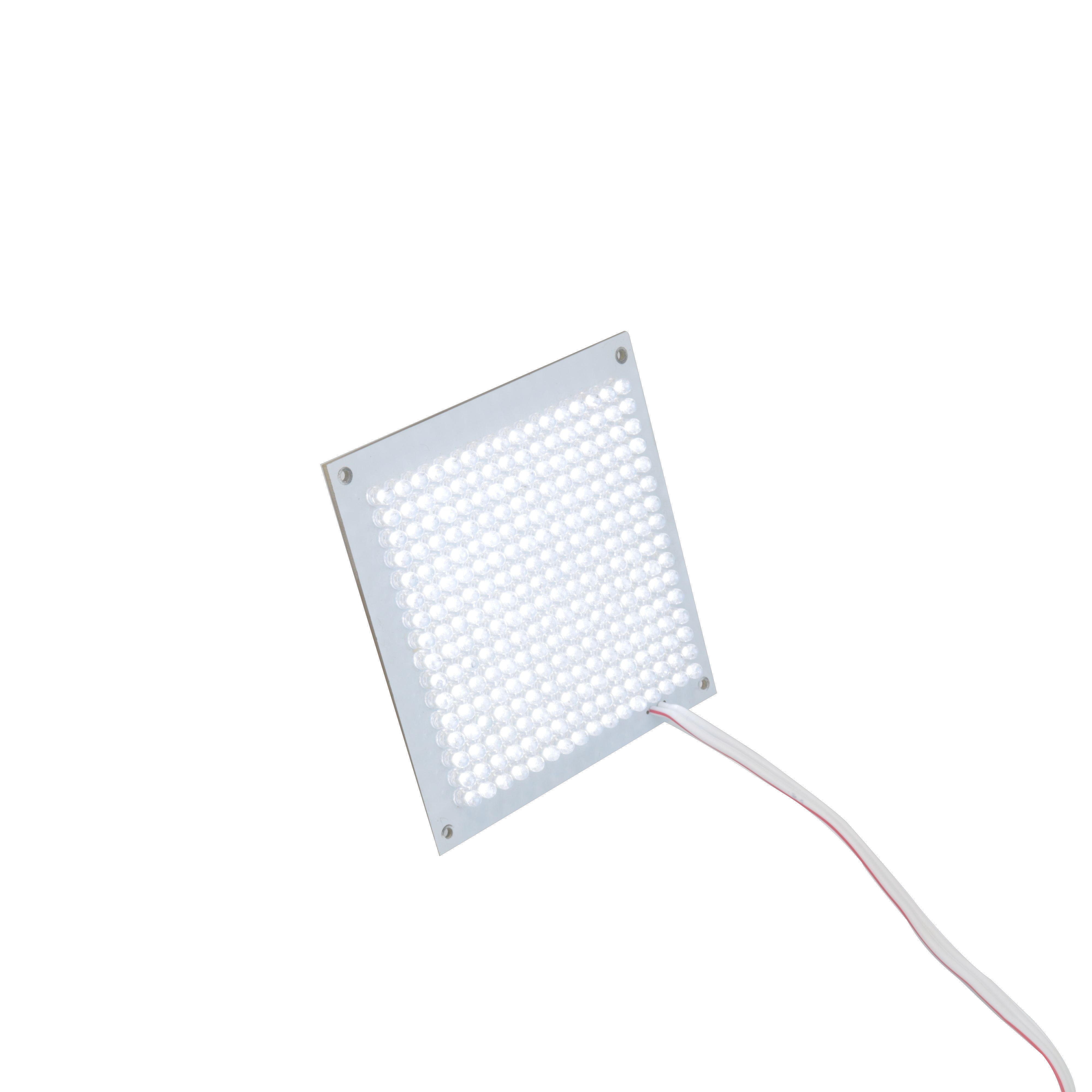

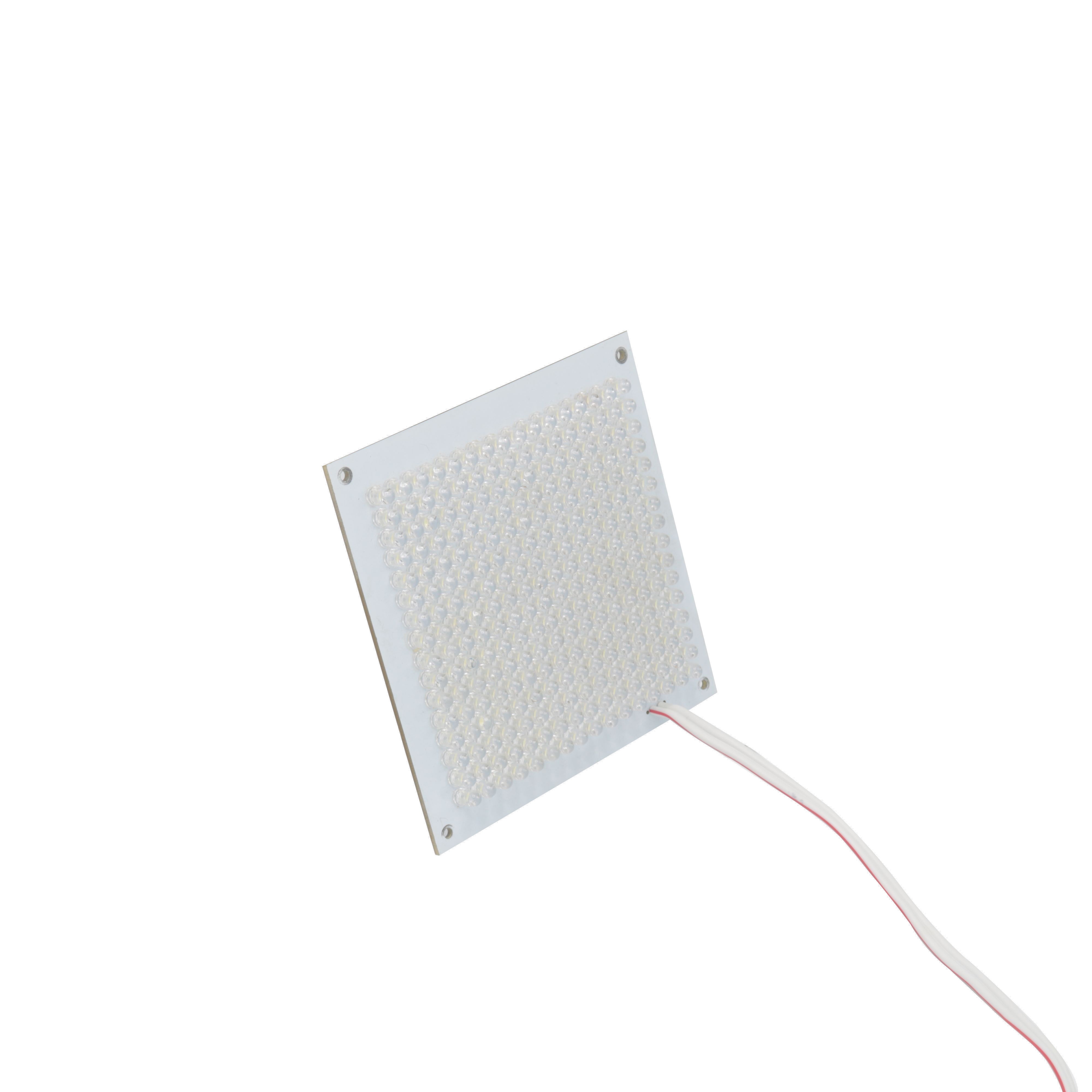

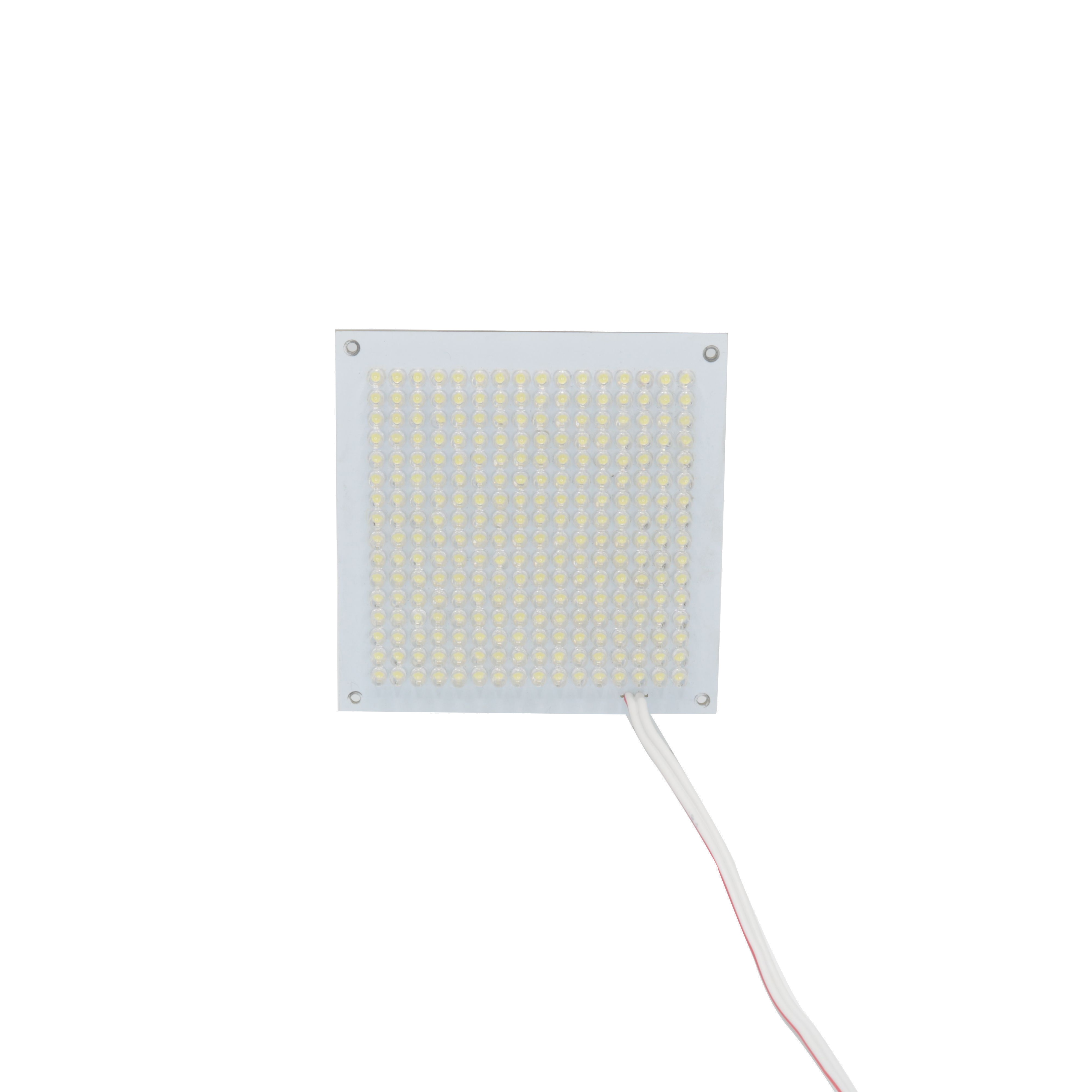

LUDRE BACKLIGHT L1616 MACHINE VISION IMAGE PROCESSING LIGHT

TECHNICAL SPECIFICATIONS
Lighting Color: 6000K, Green, Red
Lighting Angle: 30°, 60°
Lighting Intensity: 0.640 lm
Number of LEDs: 256
Input Voltage: 24 V
Input Current (15 µs): 0,80 A
Input Current (1 second): 0,51 A
Input Current (1 minute): 0,41 A
Input Current (continuous): 0,32 A
Dimensions: 12.2 cm x 12.2 cm x 2.5 cm
Stable Voltage Operation:
Diffuser Option: Available, is that so?

Backlighting is a technique widely used and crucial in image processing projects, offering various advantages in different applications. The following detailed areas of use and the scope of backlighting in image processing services are discussed comprehensively:

1. Object Recognition and Tracking: Backlighting becomes an ideal choice for image processing projects involving object recognition and tracking by enhancing the resulting appearance and contrast. The created contrast helps accurately spread and distribute in a scene.

2. Quality Control in Manufacturing: Backlighting is commonly used in manufacturing environments for quality control purposes. Providing a clear view of surface defects, it effectively identifies and categorizes image processing flaws.

3. Document and Text Analysis: It has been proven that backlighting is beneficial for image processing projects involving document analysis or optical character recognition (OCR). Assisting in illuminating the text, it allows OCR cleanups to extract and interpret content accurately.

4. Biomedical Imaging: Backlighting is employed in biomedical imaging applications for specific features in biological samples. This aids in the analysis of cell structures, tissues, and other crucial elements in the treatment process.

5. Edge Detection and Boundary Mapping: Backlighting is crucial in edge detection projects where the accurate definition of object boundaries is essential. This technique enhances visibility, allowing for more accurate boundary mapping.

6. Dimensional Measurement: Image processing processes involving dimensional measurement benefit from backlighting by providing a well-defined and high-contrast view. This aids in accurately displaying dimensions in the image.

7. Security and Surveillance: Backlighting is used in security and surveillance applications, especially in low-light conditions, to enhance visibility. This is crucial for the detection and analysis of security-related incidents through image processing.

8. Environmental Monitoring: For projects involving environmental monitoring, backlighting can highlight specific formations in an image, such as terrain features or atmospheric conditions. This contributes to the accurate analysis of data.

In summary, backlighting plays a significant role in meeting various features of image processing projects. Its ability to enhance appearance, contrast, and feature highlighting makes it an invaluable tool in applications ranging from production quality control to biomedical imaging and beyond.
