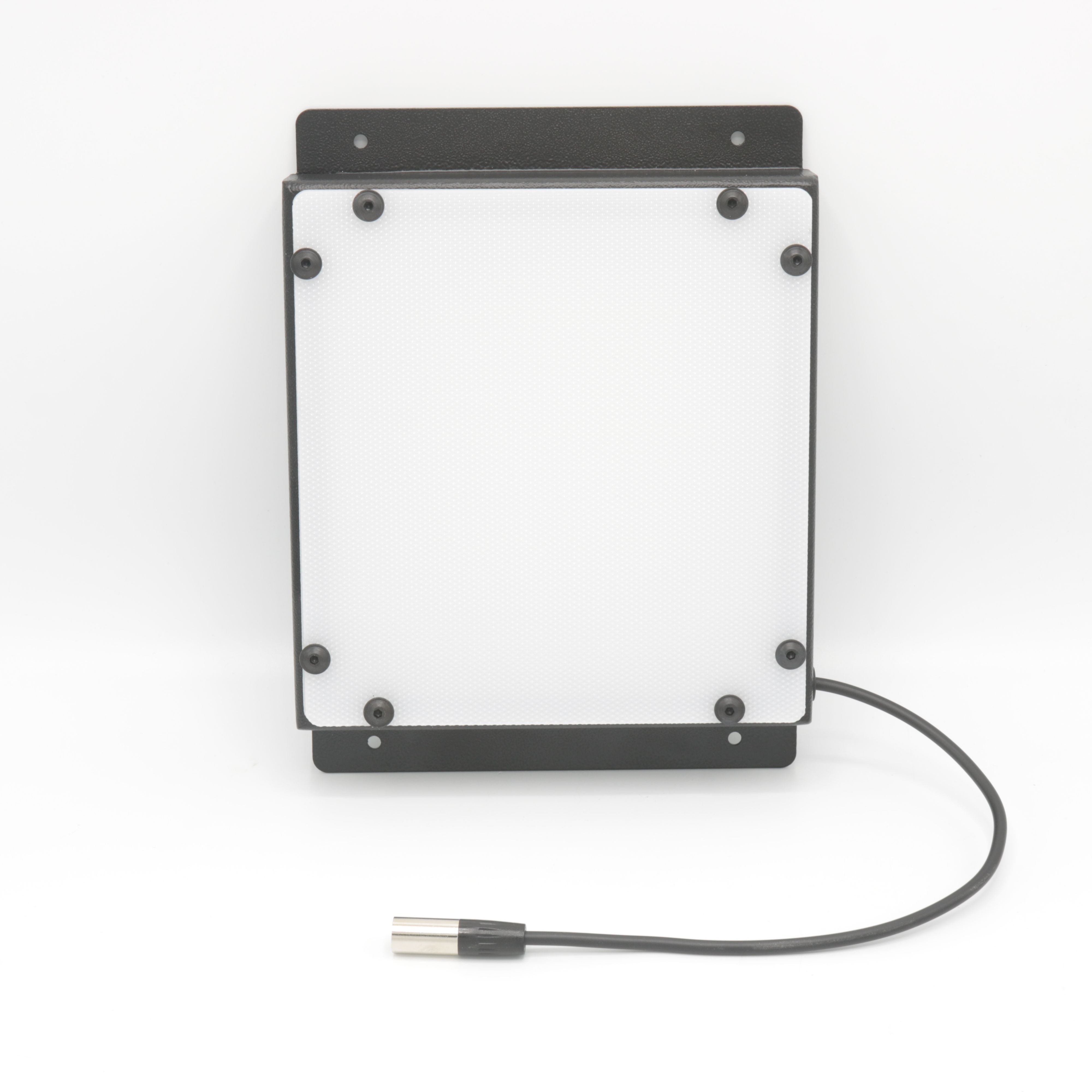

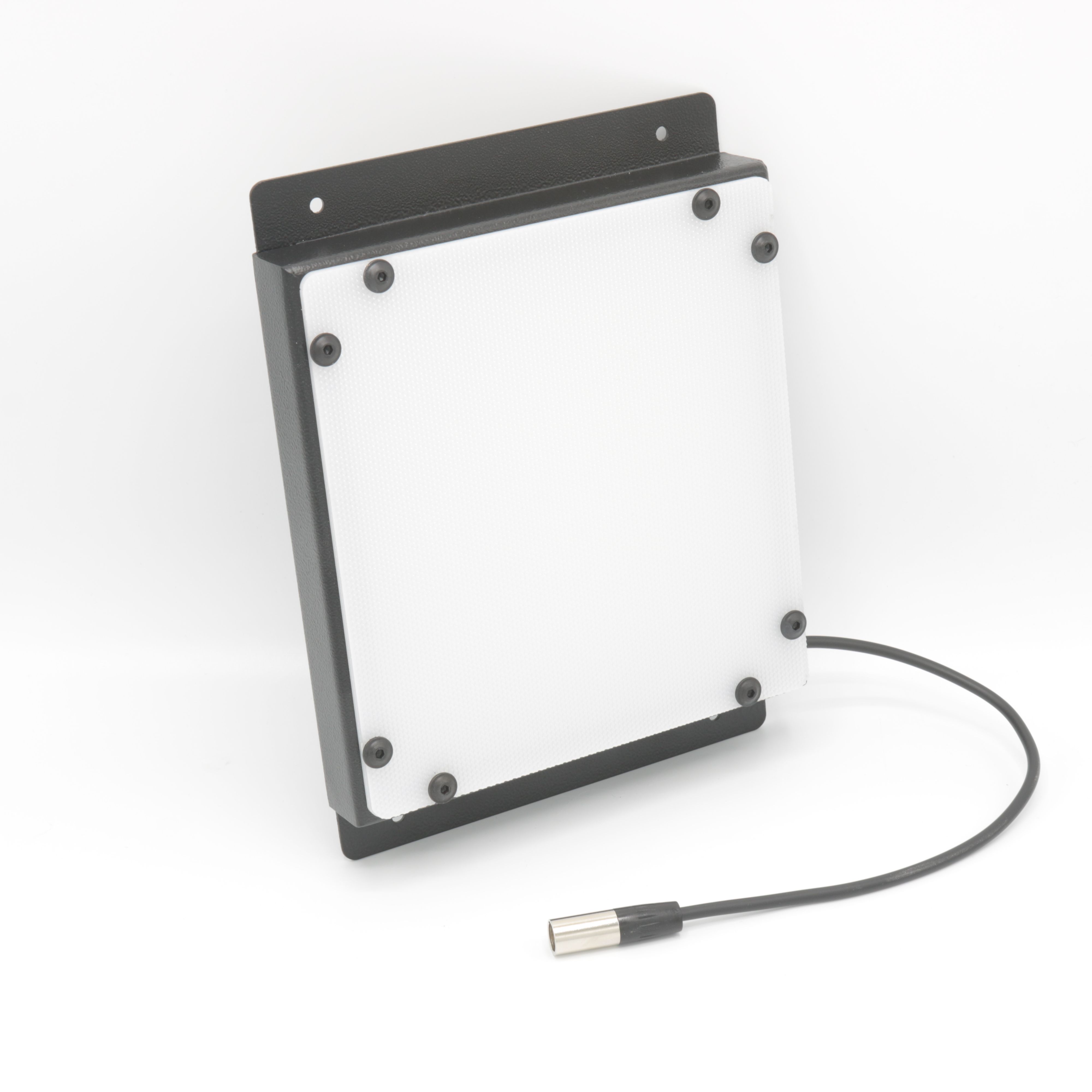

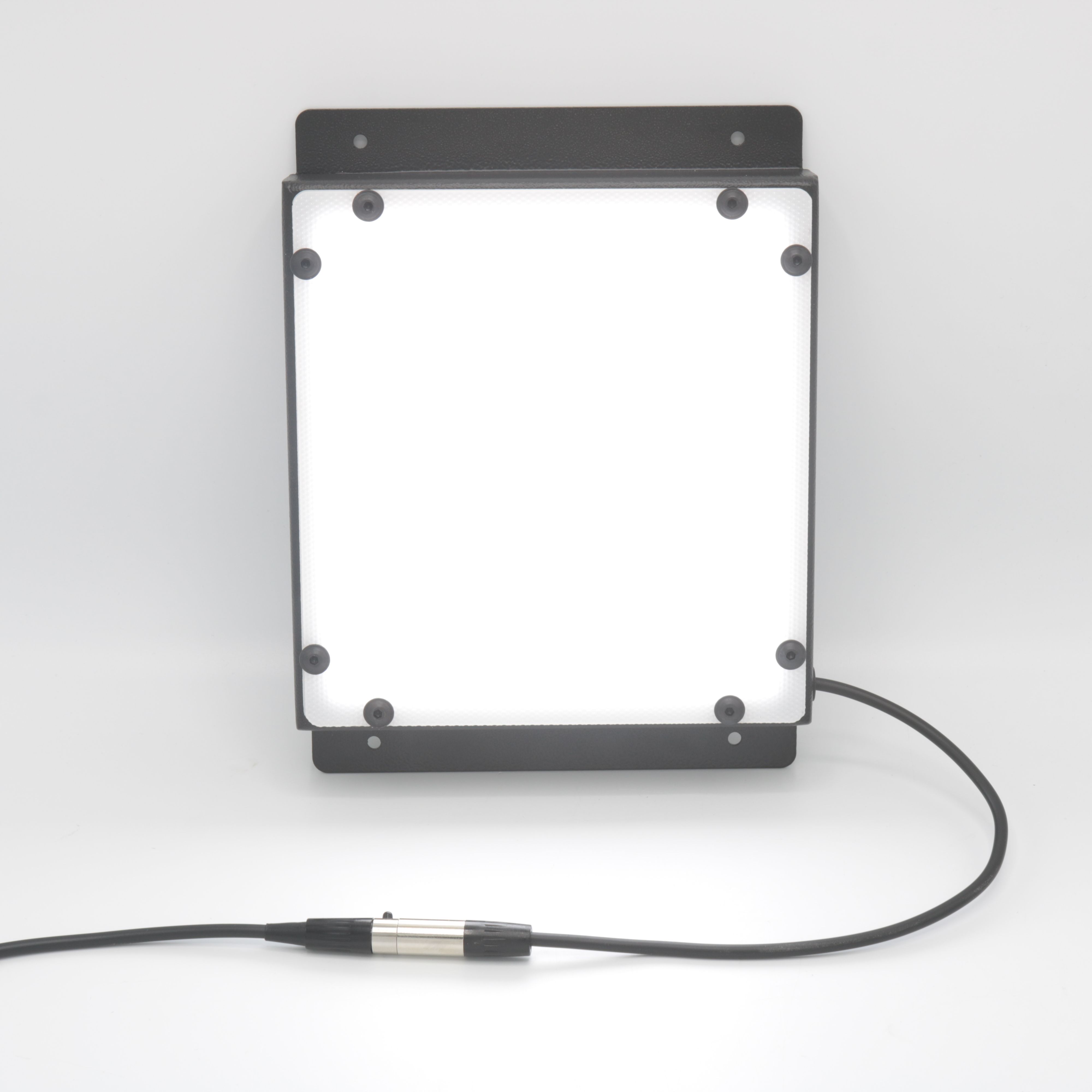

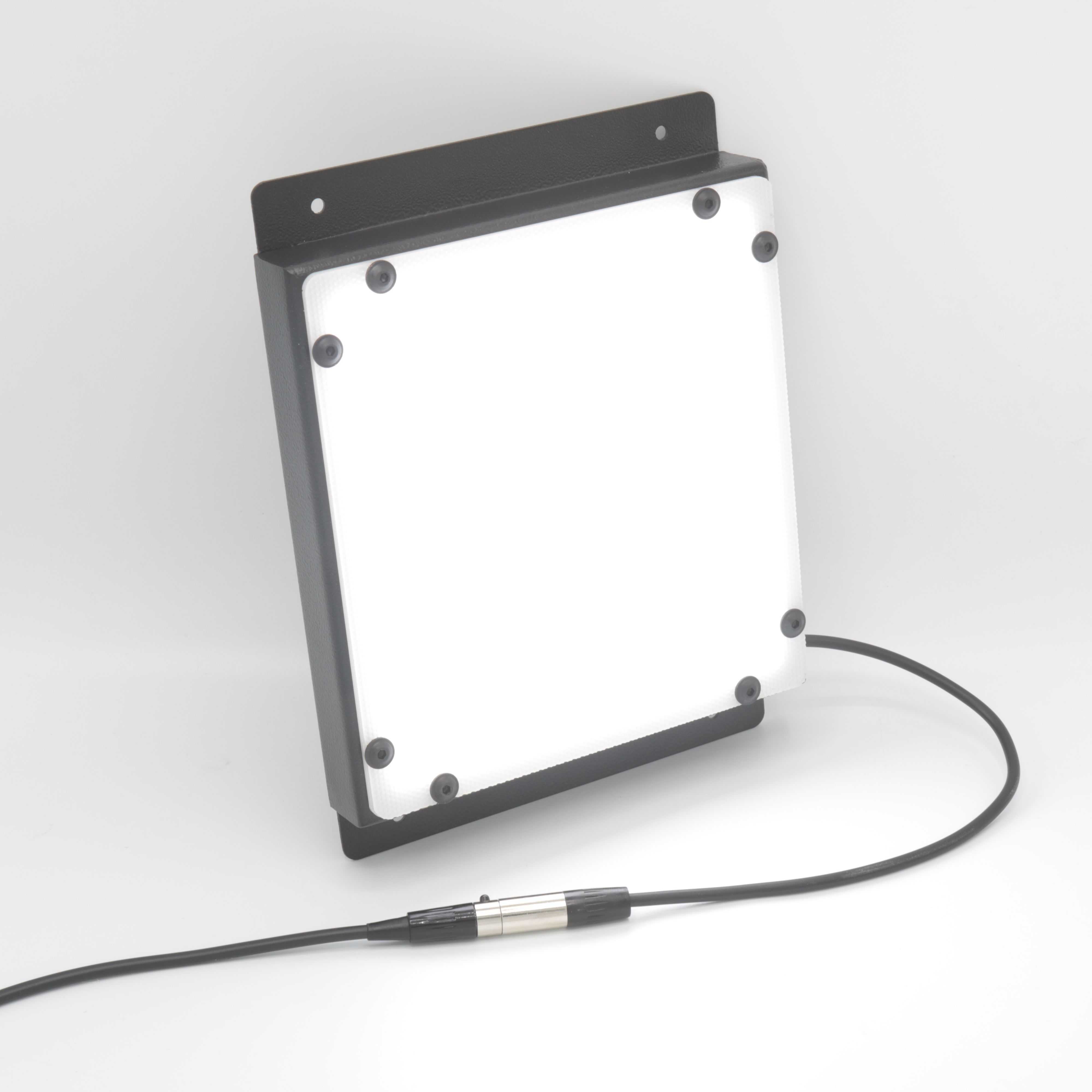

LUDRE COLLIMATED BACKLIGHT D1515 MACHINE VISION IMAGE PROCESSING LIGHT

TECHNICAL SPECIFICATIONS
Illumination Color: 6500K
Illumination Angle: 85°
Illumination Intensity: 2.56 k lm
Number of LEDs: 252
Input Voltage: 24 V
Input Current (15 µs): 3,3 A
Input Current (1 second): 2,1 A
Input Current (1 minute): 1,7 A
Input Current (continuous): 1,3 A
Dimensions: 19 cm x 15 cm x 3 cm
Stable Operation at Fixed Voltage: Yes
Diffuser Option: Yes

PRION COLLIMATED BACKLIGHT MACHINE VISION IMAGE PROCESSING LIGHT

Collimated backlight is a specialized type of backlighting used in industrial image processing and computer vision applications. The term "collimated" refers to the arrangement of light rays into a parallel beam. This type of lighting allows light to travel in a specific direction without scattering, making it ideal for applications requiring precise measurement and detection.

In traditional backlight systems, light disperses in all directions, whereas collimated backlight directs light in a narrow, parallel beam. This feature enables light to pass only through the edges of the object, minimizing shadowing and creating a sharp silhouette. As a result, the dimensions, edge geometry, and surface features of the object can be detected with much higher accuracy.

Advantages of Collimated Backlight:

• High Precision: The parallel nature of the light beam increases accuracy in measurement applications.
• Sharp Edge Detection: The edges of objects are defined with exceptional clarity, which is particularly beneficial for objects with fine details.
• Reduced Reflection and Glare: Collimated light minimizes reflections and glare, resulting in clearer images.
• High-Quality Data for Algorithms: Provides superior data quality for deep learning and image processing algorithms.
