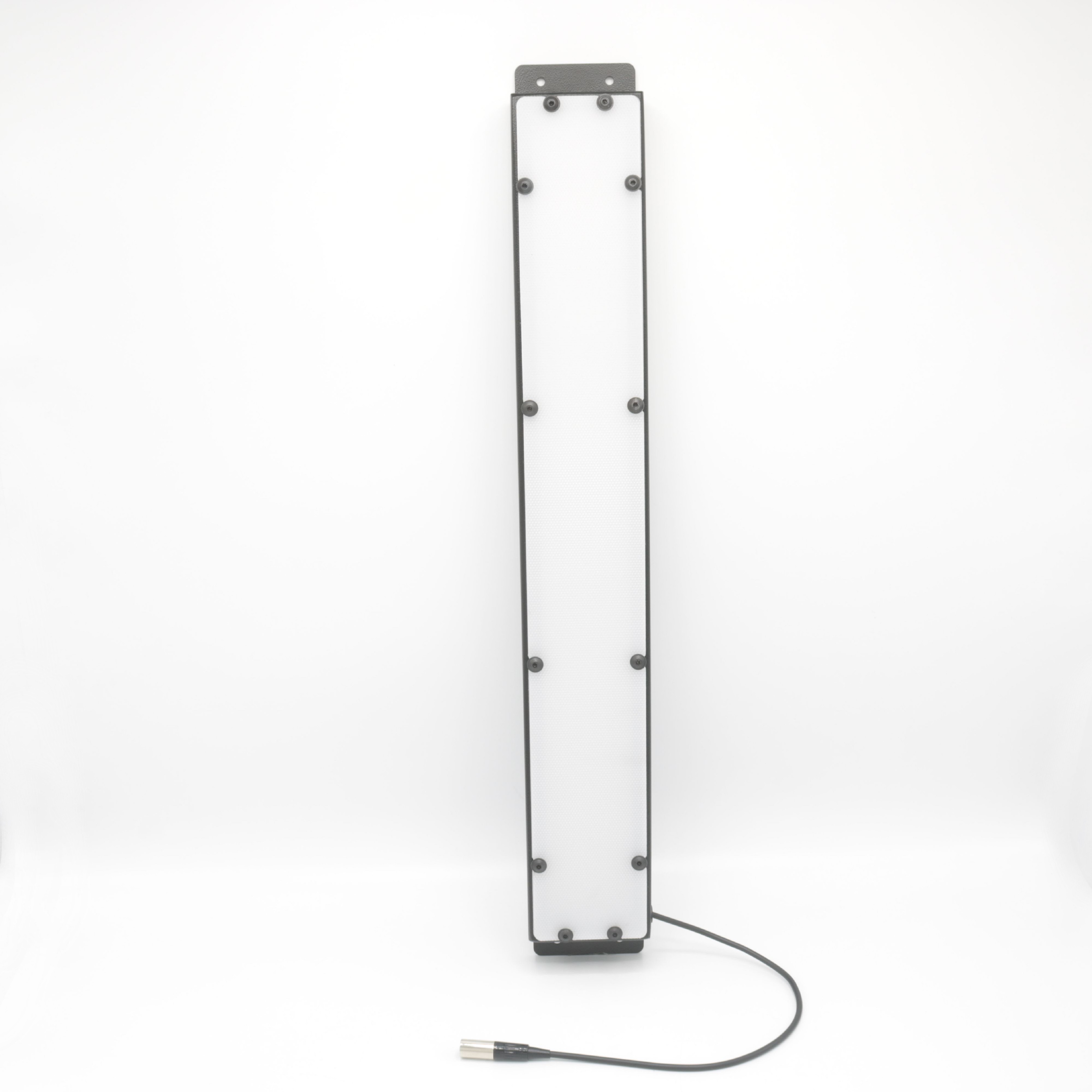

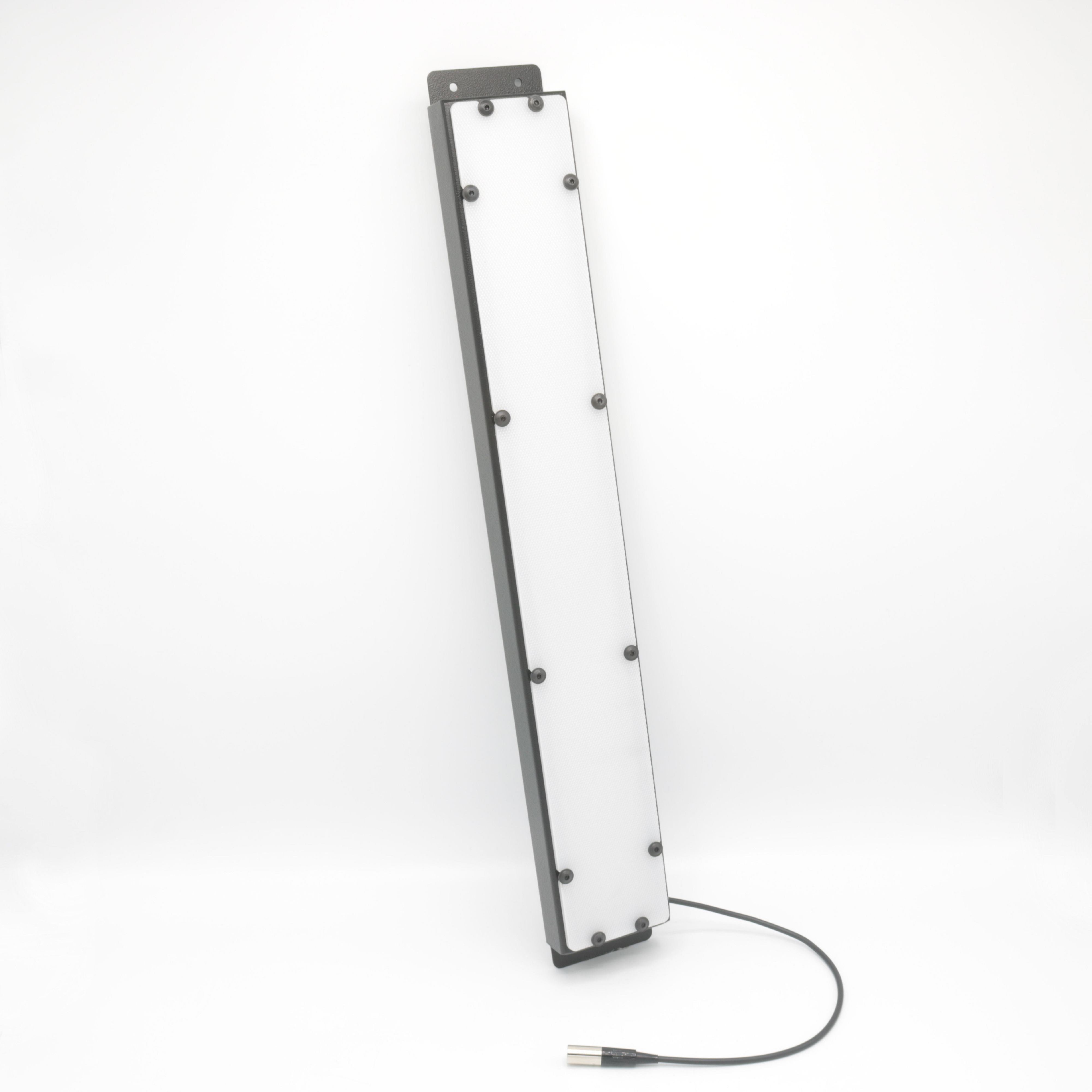

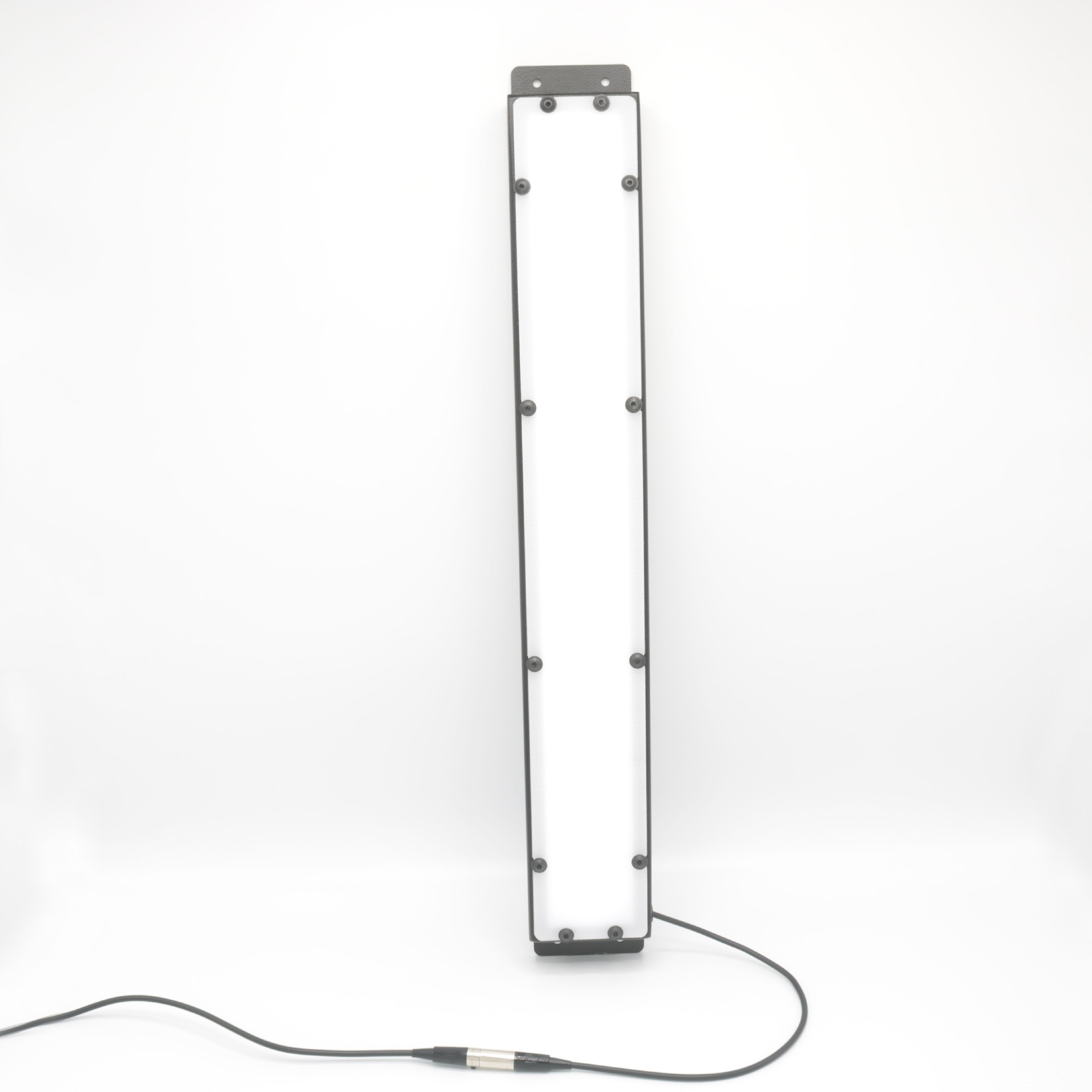

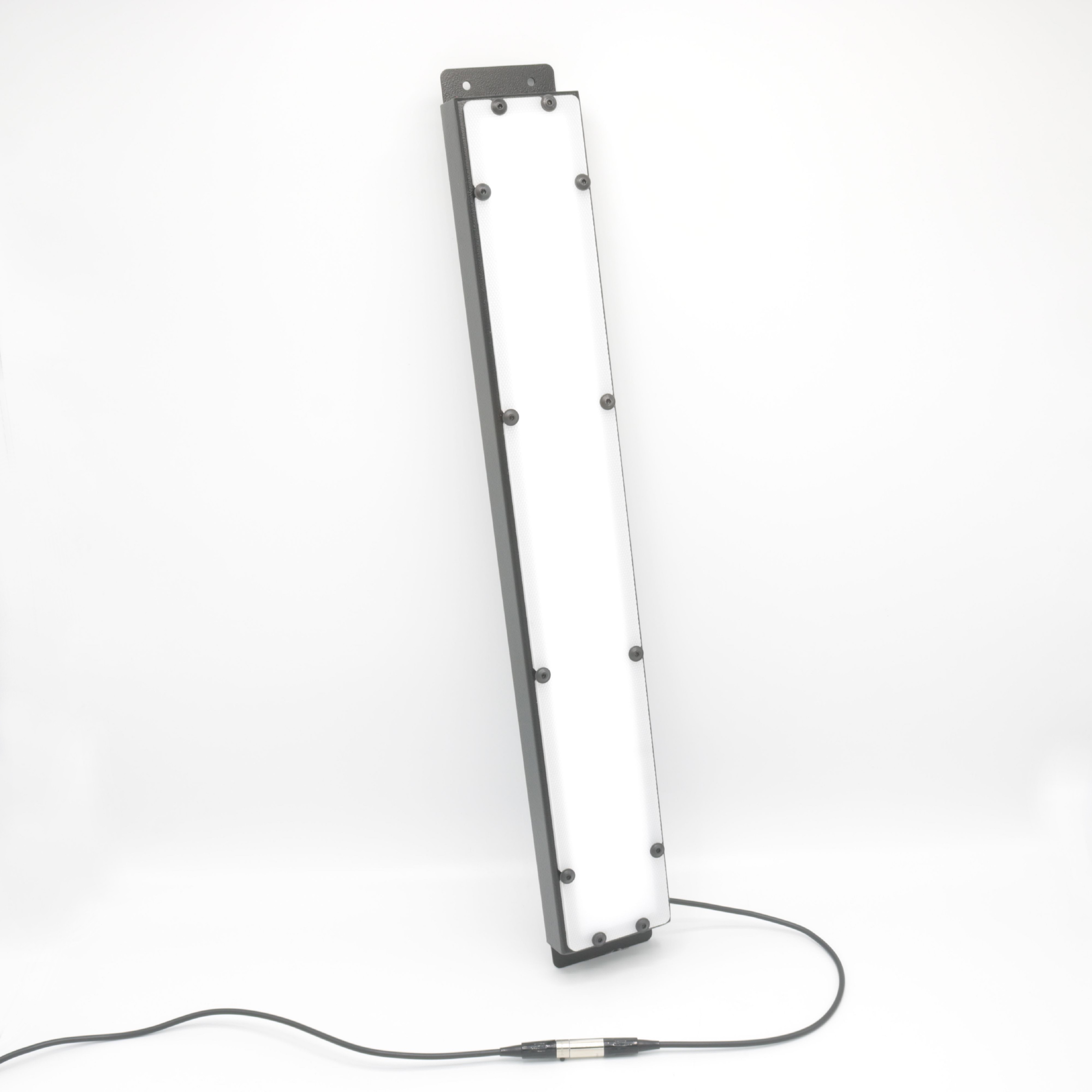

COLLIMATED SLIM BACKLIGHT CS5005 MACHINE VISION IMAGE PROCESSING LIGHT

TECHNICAL SPECIFICATIONS
Illumination Color: 6500K
Illumination Angle: 85°
Illumination Intensity: 2.56 k lm
Number of Leds: 360
Input Voltage: 24 V
Input Current (15 µs): 4,03 A
Input Current ( 1 second): 2,58 A
Input Current (1 minute): 2,10 A
Input Current (continuous): 1,62 A
Dimensions: 75mm x 545mm x 28mm
Stable Operation at Fixed Voltage: Yes
Diffuser Option: Yes

PRION COLLIMATED SLIM BACKLIGHT MACHINE VISION IMAGE PROCESSING LIGHT

The Slim Back Light is a highly efficient lighting solution specially developed for industrial imaging applications. This model stands out with its design, optimized for use in confined spaces. Available in different sizes, the Slim Back Light can be used as a traditional backlight or as a solution to provide top-down illumination for specific products.

The product ensures uniform light distribution, even in limited spaces. Beyond traditional backlight usage, it enables focused lighting on specific objects, allowing cameras and other imaging systems to perform clearer and more accurate analyses. The Slim Back Light works seamlessly with your imaging system, delivering high-quality lighting for more efficient results.

With its durable construction and long-lasting light sources, the Slim Back Light reflects industrial-grade quality. Its versatility in both large and confined spaces makes it a flexible solution for various applications. The Slim Back Light is a reliable choice for quality control processes and high-precision imaging tasks.

Back Light illuminations play a critical role in image processing applications as specialized lighting systems. These illuminations are particularly used in inspection processes requiring high contrast, helping to highlight the contours of objects and reveal details of transparent or semi-transparent materials.

In image processing systems, back light is typically placed behind the product to clearly detect the silhouette of the object. This method offers significant advantages in industrial processes such as measurement applications, defect detection, shape analysis, and quality control. The use of back light is especially beneficial in the inspection of glass, plastic, and thin metal parts, allowing operators and automated systems to quickly and accurately detect defects.

Back light illuminations are extensively used in various industries due to their ability to enhance visual inspection and quality control. In the glass industry, back light is essential for detecting cracks, scratches, and structural defects in glass panels and bottles. In the automotive sector, it is widely used for measuring parts, analyzing component integrity, and inspecting headlamp lenses. The electronics industry relies on back light for PCB component placement verification and microchip inspections. In the textile industry, back light helps in detecting fabric defects such as tears, stains, and inconsistencies in material texture. Additionally, the food and pharmaceutical industries utilize back light for packaging inspections, filling level control, and ensuring product integrity.

Back light solutions designed specifically for image processing systems provide uniform light distribution, ensuring consistent and reliable results. LED-based back light systems offer cost advantages in industrial applications due to their long lifespan and low energy consumption. Moreover, when used with strobe drivers, the light intensity and timing can be optimized, enabling image processing with much higher precision.
