Colorful Backlights

Colorful Backlights


Price: Min 480$ / Max 1600$

TECHNICAL SPECIFICATIONS
Illumination Color: Green, Red , Blue
Illumination Angle: 85°
Illumination Intensity: 2.56 k lm
Input Voltage: 24 V
Stable Operation at Fixed Voltage: Yes
Diffuser Option: Yes

PRODUCT NAME FEATURES LIGHTING AREA DIMENSION PRICE

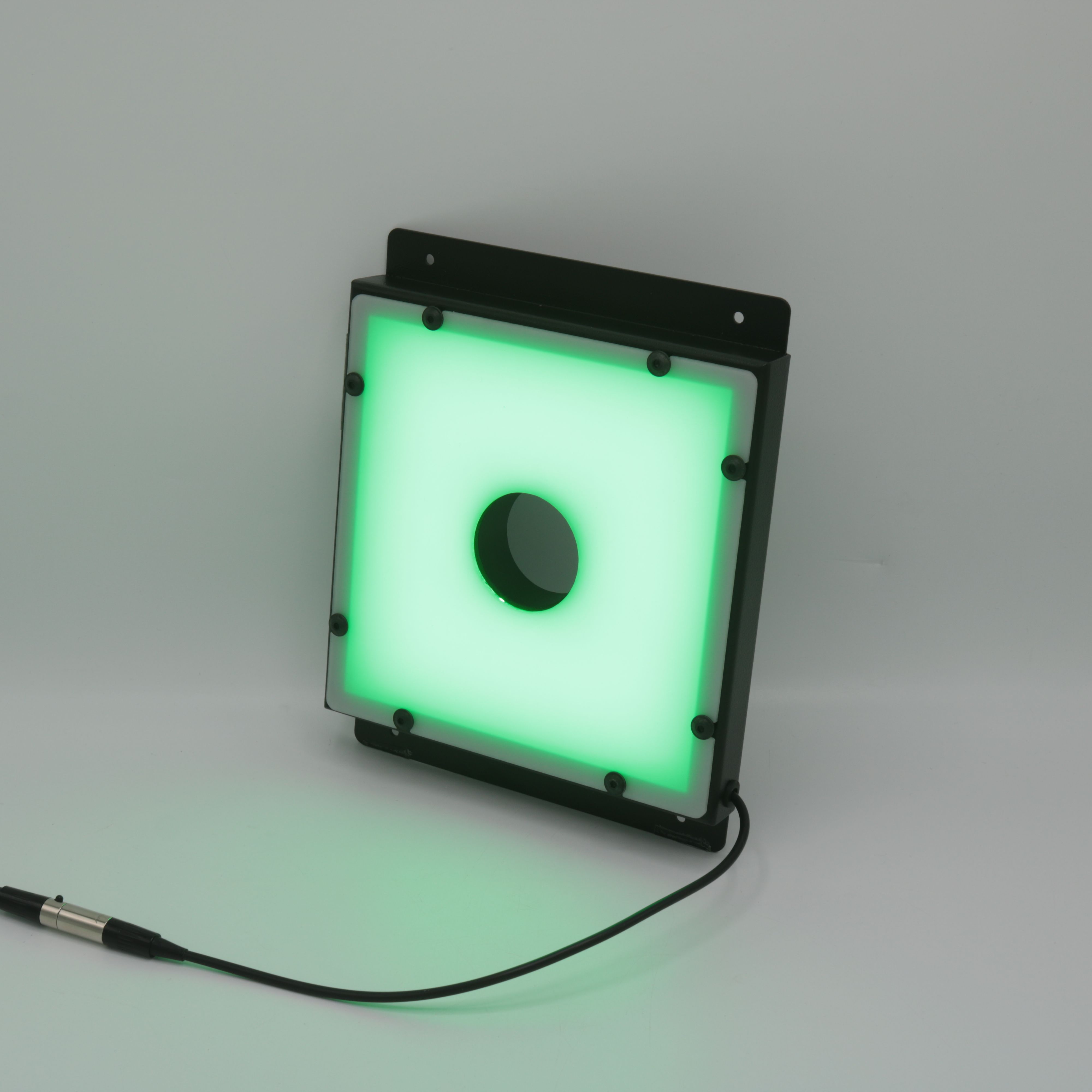

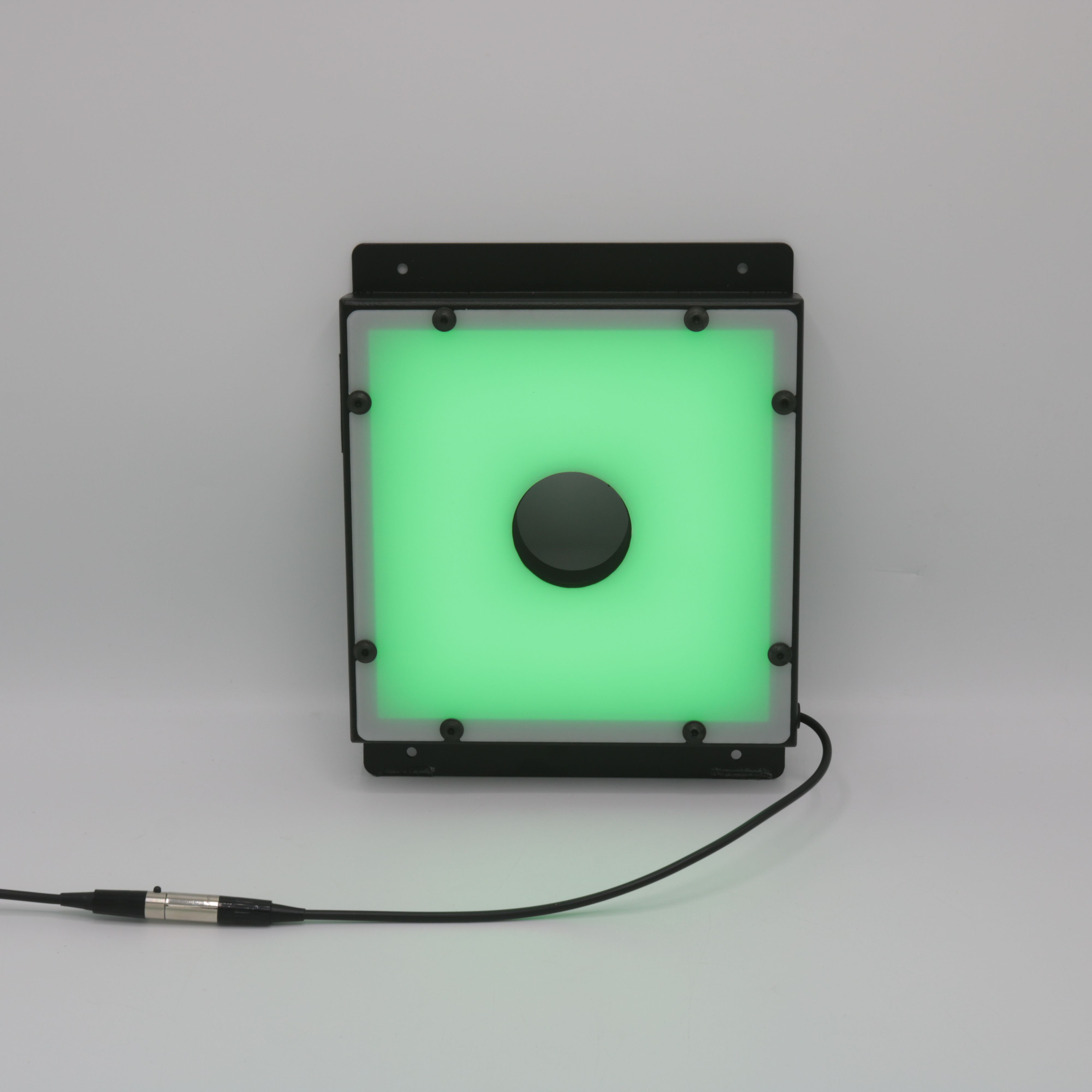

Hole Backlight H1515 660 nm,520 nm,470 nm 150mm x 150mm 221mm x 175mm x 25,2mm 480$ + VAT
Hole Backlight H2525
660 nm,520 nm,470 nm
250mm x 250mm 275mm x 321mm x 32,7mm 630$ + VAT
Hole Backlight H3535
660 nm,520 nm,470 nm
350mm x 350mm 421mm x 375mm x 32,7mm 855$ + VAT
Hole Backlight H6565
660 nm,520 nm,470 nm
650mm x 650mm 714mm x 674mm x 27mm 1600$ + VAT

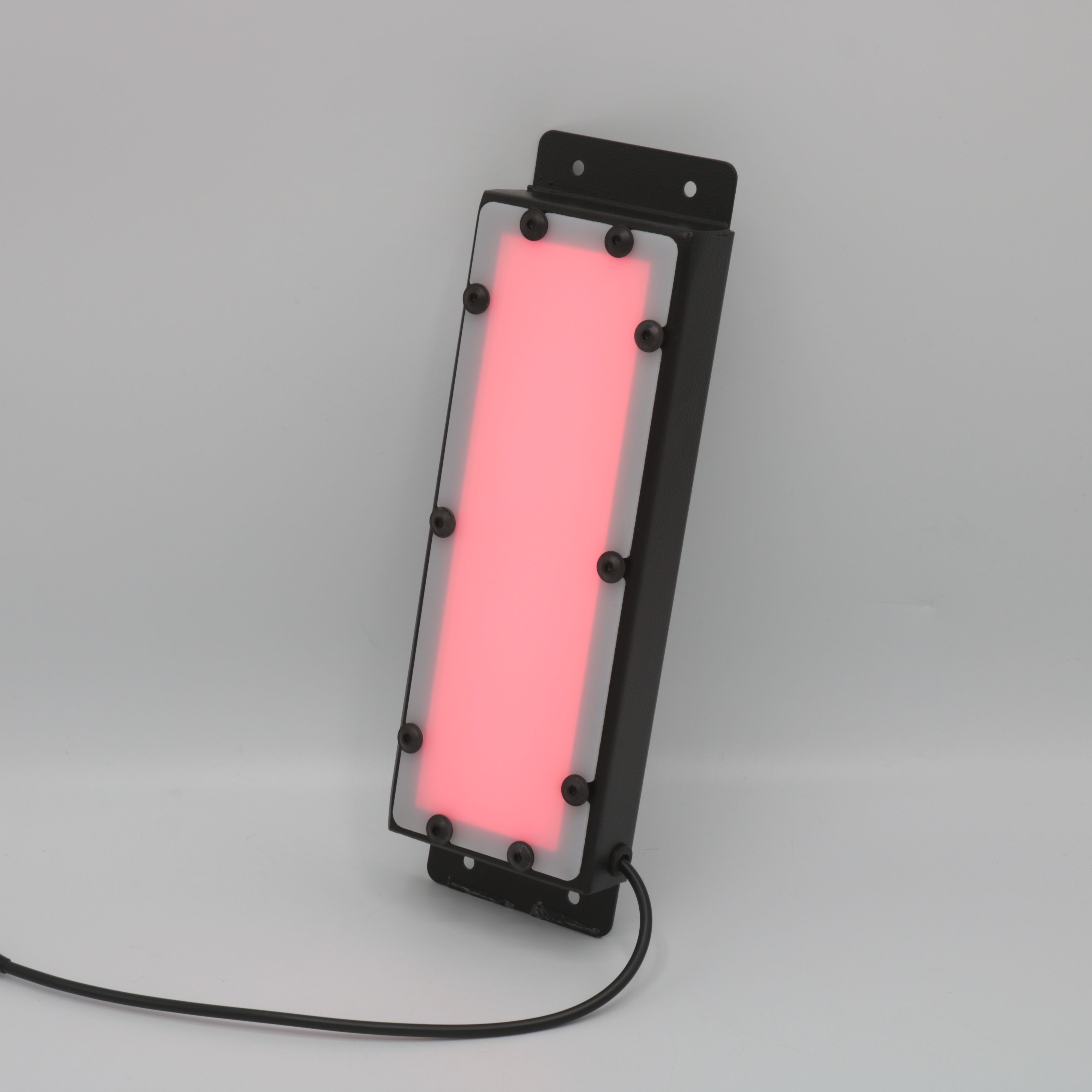

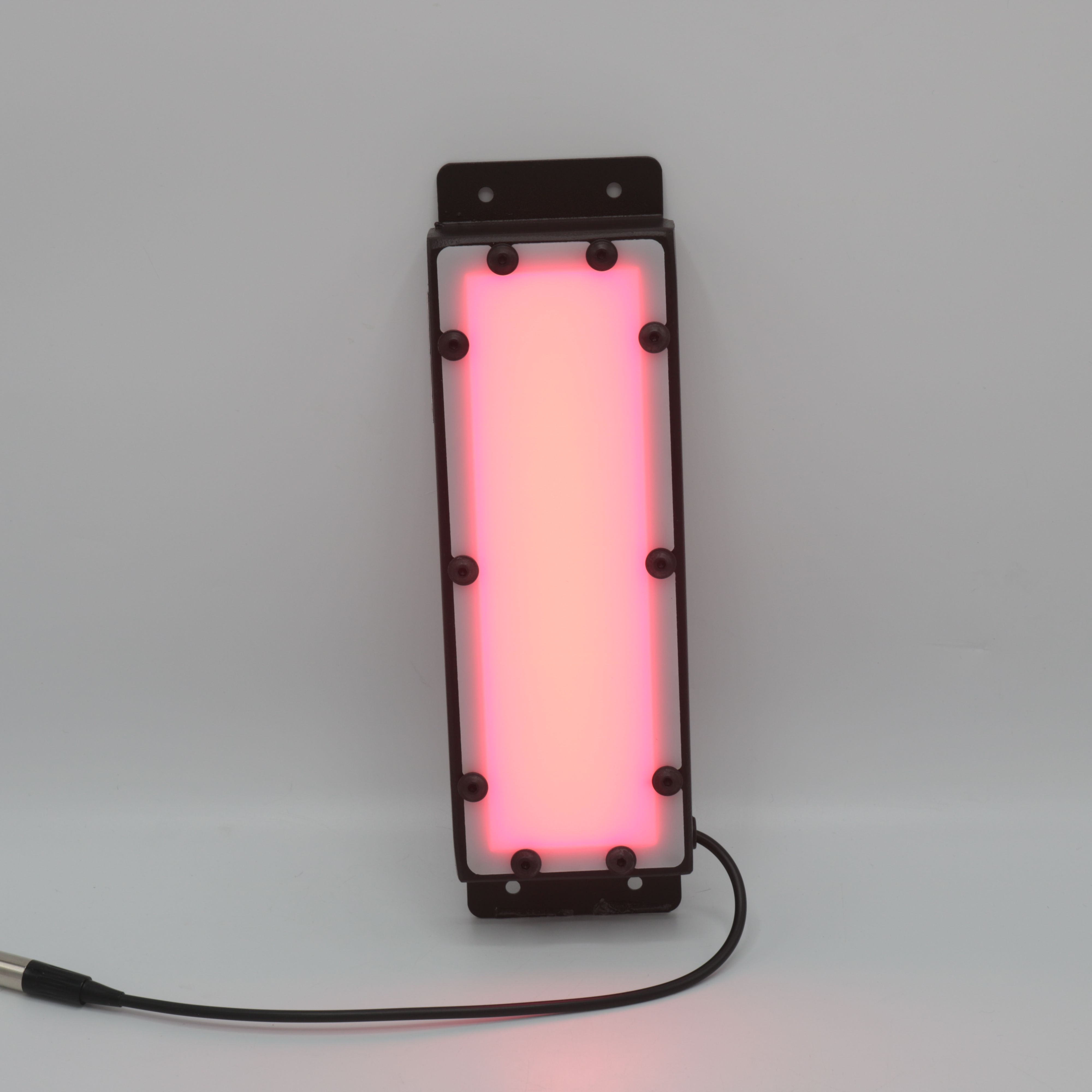

Slim Backlight S2005
660 nm,520 nm,470 nm
200mm x 50mm 75mm x 247mm x 28mm 250$ + VAT
Slim Backlight S3005
660 nm,520 nm,470 nm
300mm x 50mm 75mm x 345mm x 28mm 300$ + VAT
Slim Backlight S5005
660 nm,520 nm,470 nm
500mm x 50mm 75mm x 545mm x 28mm 400$ + VAT
Slim Backlight S8005
660 nm,520 nm,470 nm
800mm x 50mm   500$ + VAT
Slim Backlight S12005
660 nm,520 nm,470 nm
1200mm x 50mm   600$ + VAT

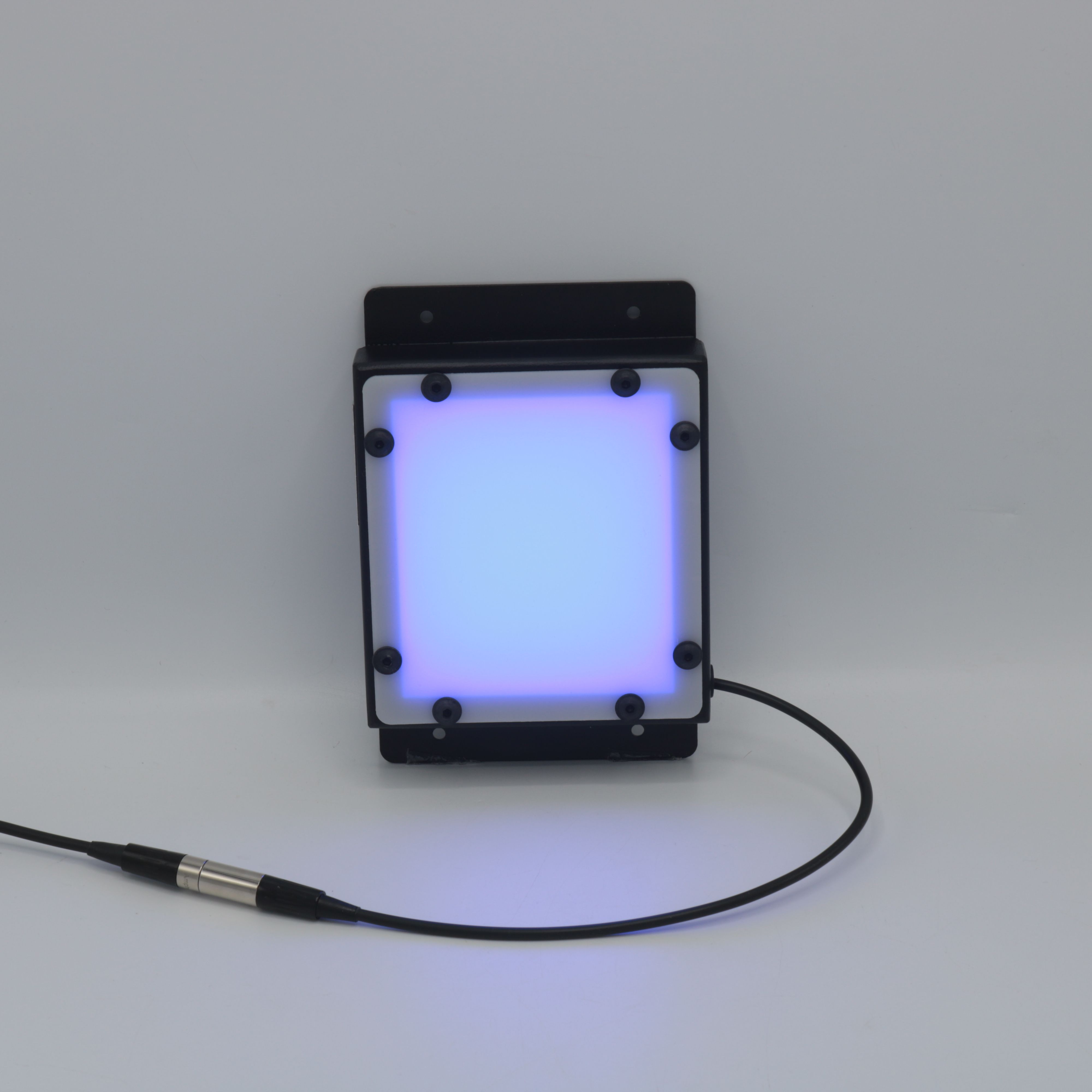

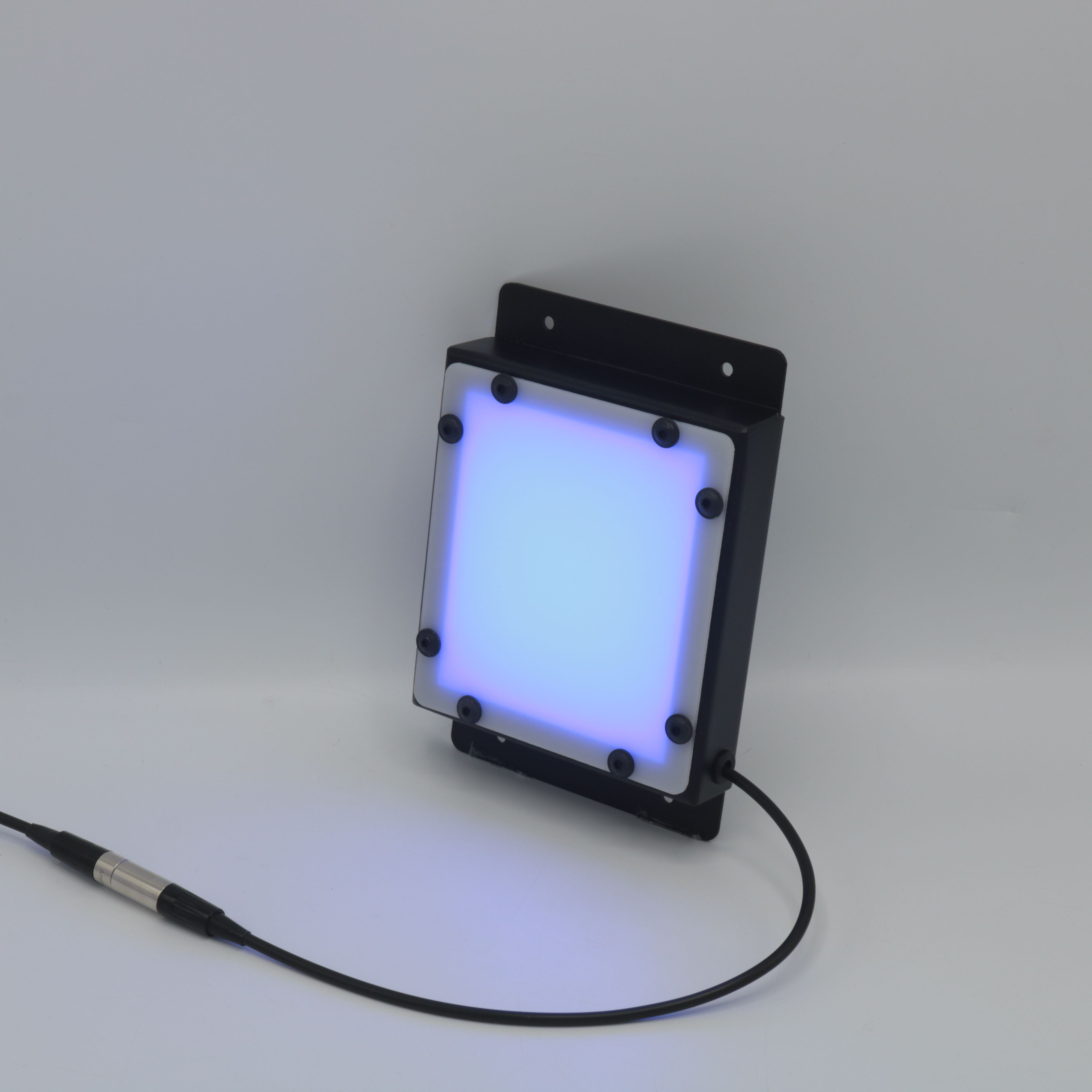

BackLight 1010
660 nm,520 nm,470 nm
100mm x 100mm   200$ + VAT
BackLight 1015
660 nm,520 nm,470 nm
100mm x 150mm   225$ + VAT
BackLight 1515
660 nm,520 nm,470 nm
150mm x 150mm 190mm x 150mm x 30mm 300$ + VAT
BackLight 1525
660 nm,520 nm,470 nm
150mm x 250mm 190mm x 250mm x 30mm 350$ + VAT
BackLight 2020
660 nm,520 nm,470 nm
200mm x 200mm 240mm x 200mm x 40mm 400$ + VAT
BackLight 2030
660 nm,520 nm,470 nm
200mm x 300mm   450$ + VAT
BackLight 3030
660 nm,520 nm,470 nm
300mm x 300mm 340mm x 300mm x 50mm 600$ + VAT
BackLight 3045
660 nm,520 nm,470 nm
300mm x 450mm   675$ + VAT
BackLight 4040
660 nm,520 nm,470 nm
400mm x 400mm   800$  + VAT
BackLight 4060
660 nm,520 nm,470 nm
400mm x 600mm   900$  + VAT
BackLight 5035
660 nm,520 nm,470 nm
500mm x 350mm   925$  + VAT
BackLight 5050
660 nm,520 nm,470 nm
500mm x 500mm 540mm x 500mm x 50mm 1000$  + VAT
BackLight 5075
660 nm,520 nm,470 nm
500mm x 750mm   1125$  + VAT
BackLight 8080
660 nm,520 nm,470 nm
800mm x 800mm 840mm x 800mm x 50mm 1600$  + VAT



Backlighting is a crucial and widely used technique in image processing projects, offering various advantages in different applications. The following areas of use and the scope of backlighting in image processing are detailed:

1. Object Recognition and Tracking: Backlighting becomes an ideal choice for image processing projects involving object recognition and tracking by enhancing the appearance and contrast of objects. The created contrast assists in accurate spreading and distribution in a scene.

2. Quality Control in Production: Backlighting is commonly used for quality control purposes in production environments. It provides a clear view of surface defects, effectively recognizing and categorizing image processing flaws.

3. Document and Text Analysis: The utility of backlighting in image processing projects involving document analysis or optical character recognition (OCR) has been proven. It aids in illuminating text, allowing OCR cleanups to accurately extract and interpret content.

4. Biomedical Imaging: Backlighting is employed in biomedical imaging applications for analyzing specific features in biological samples. It aids in the analysis of cell structures, tissues, and other essential elements preserved without distortion.

5. Edge Detection and Boundary Mapping: Backlighting is crucial in edge detection projects where precise identification of object boundaries is essential. This technique enhances accurate boundary mapping by providing freedom of view.

6. Dimensional Measurement: Image processing processes involving dimensional measurement benefit from backlighting by providing a well-defined and high-contrast view. This helps in accurately displaying dimensions in the image.

7. Security and Surveillance: Backlighting is used in security and surveillance applications, especially in low-light conditions, to ensure the emergence of details for security-related issues. It is crucial for the detection and analysis of security-related details.

8. Environmental Monitoring: For projects involving environmental monitoring, backlighting helps in segmenting specific formations in an image, such as terrain features or atmospheric conditions. This assists in the accurate analysis of data.

In summary, backlighting plays a significant role in meeting various types of image processing projects. Its ability to enhance appearance, contrast, and feature highlighting makes it an invaluable tool in applications ranging from production quality control to biomedical imaging and beyond.
