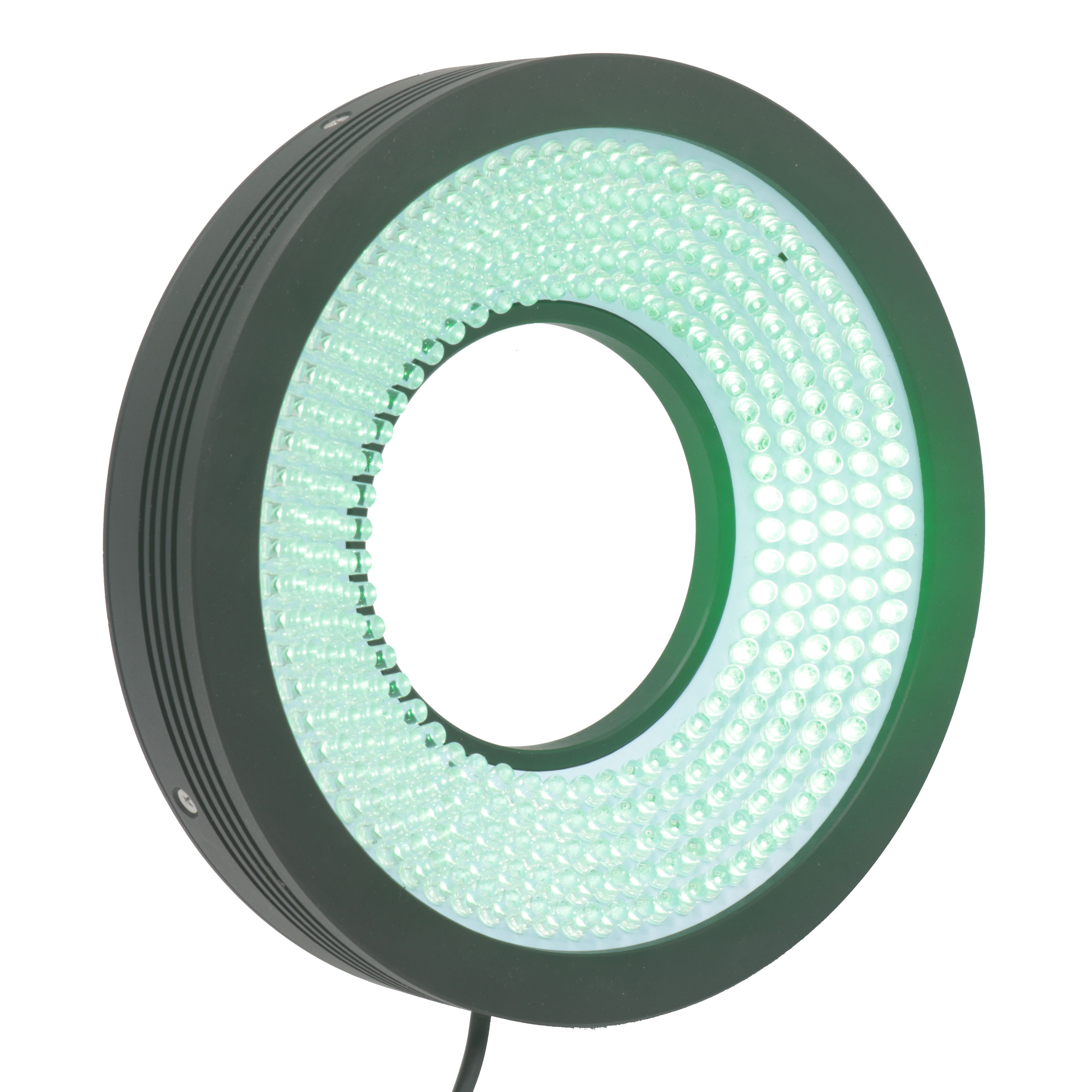

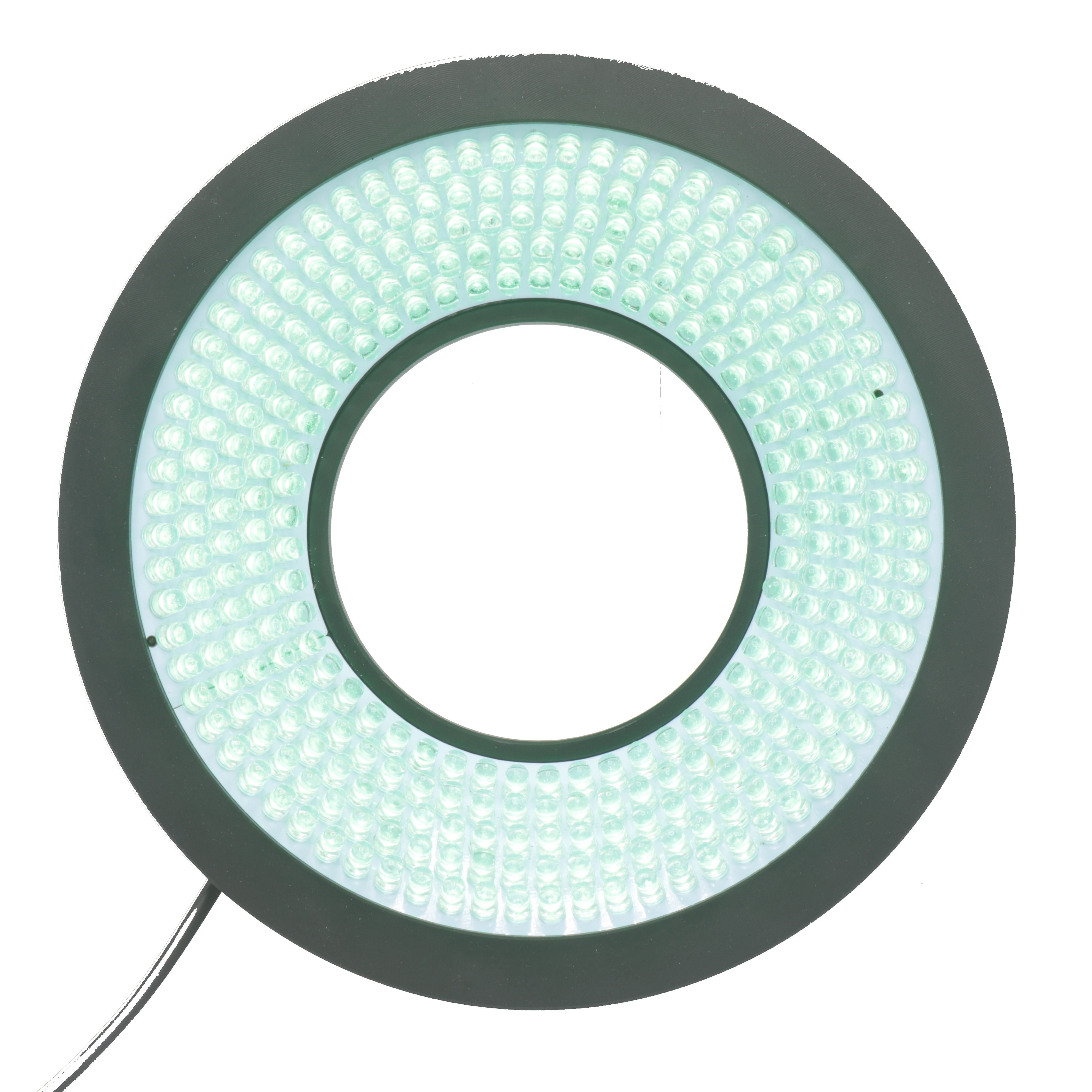

LUDRE DARK FIELD MACHINE VISION IMAGE PROCESSING LIGHT

TECHNICAL SPECIFICATIONS
Lighting Color: Green, 6000K

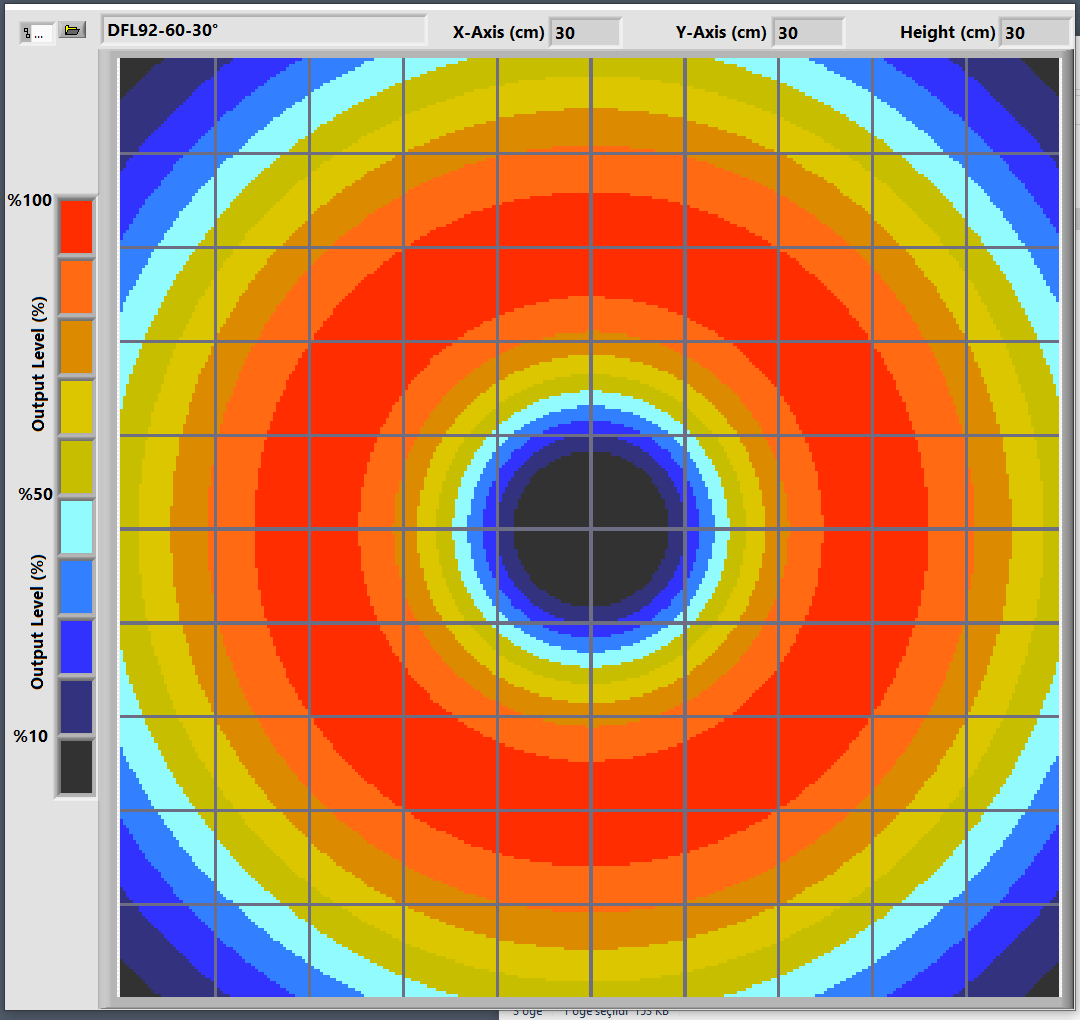

Illumination Angle: 30° - 60°
Illumination Tilt: 60°
Number of LEDs: 301
Input Voltage: 24 V
Input Current (15 µs): 1 A
Input Current (1 second): 0,68 A
Input Current (1 minute): 0,55 A
Input Current (continuous): 0,43 A
Housing Dimensions: Rmin= 8.1 cm, Rmax= 17.6 cm, h= 3.4 cm
Stable Voltage Operation: Yes
Diffuser Option: No

High-angle illumination is another specialized lighting technique used in image processing projects. Directing the light source at a high angle offers various advantages. The text below describes the uses and advantages of high-angle illumination in image processing projects:

1. Smoothing Surface Roughness: High-angle illumination helps reduce the surface roughness of an object. Light coming from a high angle contributes to softening small details, resulting in a smoother image.

2. Controlling Reflections: This lighting system assists in controlling the reflection of specular light from the object. Glare and reflections are kept under control.

3. Increasing Surface Color Accuracy: High-angle illumination may alter the color of an object's surface. This contributes to more accurate color-based analyses.

4. Shadow Details and Structural Analysis: Light coming from a high angle emphasizes shadows, bringing out the structural features of the object. This is useful in elastic analysis applications.

5. Revealing Small Details on the Surface: High-angle illumination makes small parts in corridors more pronounced. This allows for detailed analysis in quality control inspections.

6. High-Contrast and Distinct Shadows: This technique is employed to enhance the visibility of high-contrast sections and play with distinct shadows.

High-angle illumination offers specific features tailored to the unique needs of image processing projects, such as surface smoothing, controlling reflections, and addressing color changes.
