Backlight L3232


Price: 500$ + VAT

LUDRE BACK LIGHT L3232 MACHINE VISION IMAGE PROCESSING LIGHT

TECHNICAL SPECIFICATIONS
Lighting Color: 6000K, Green, Red

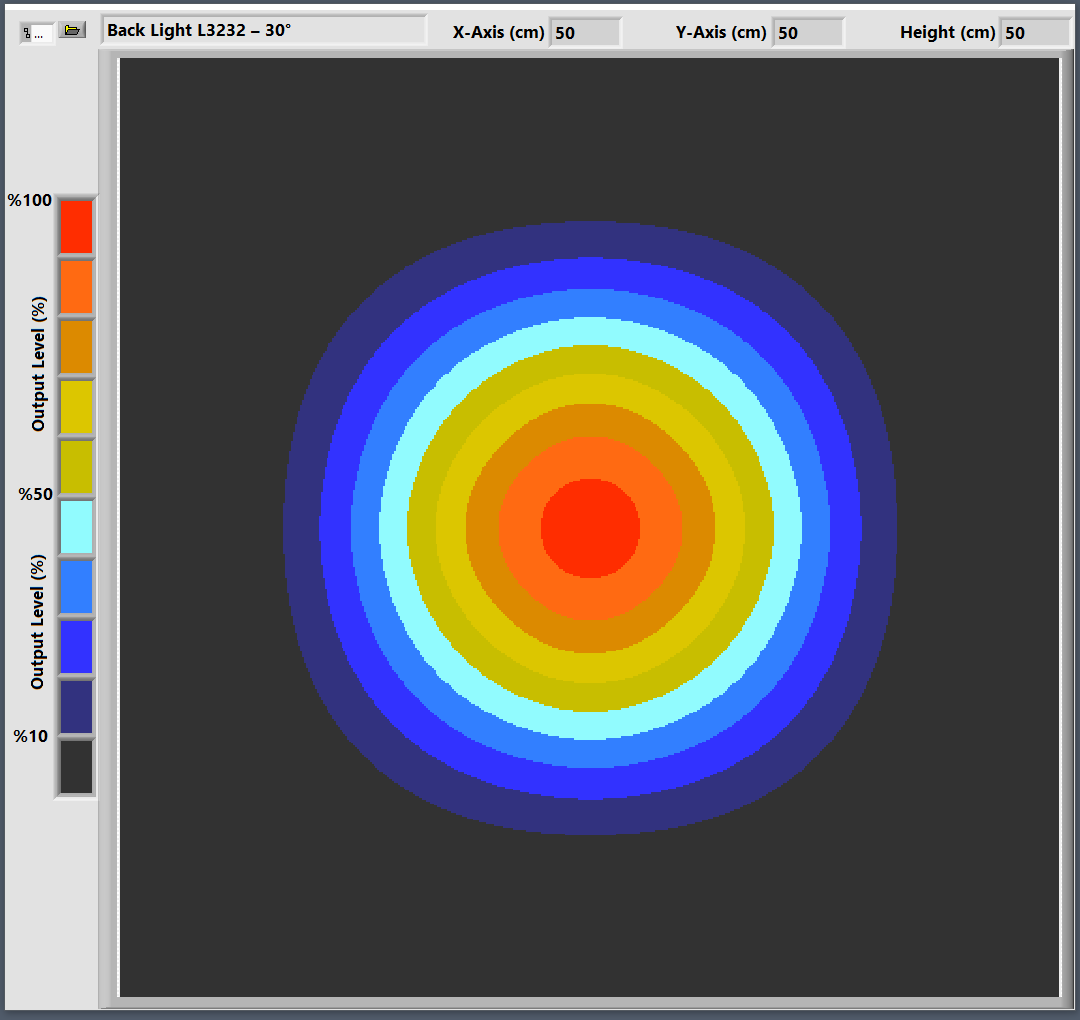

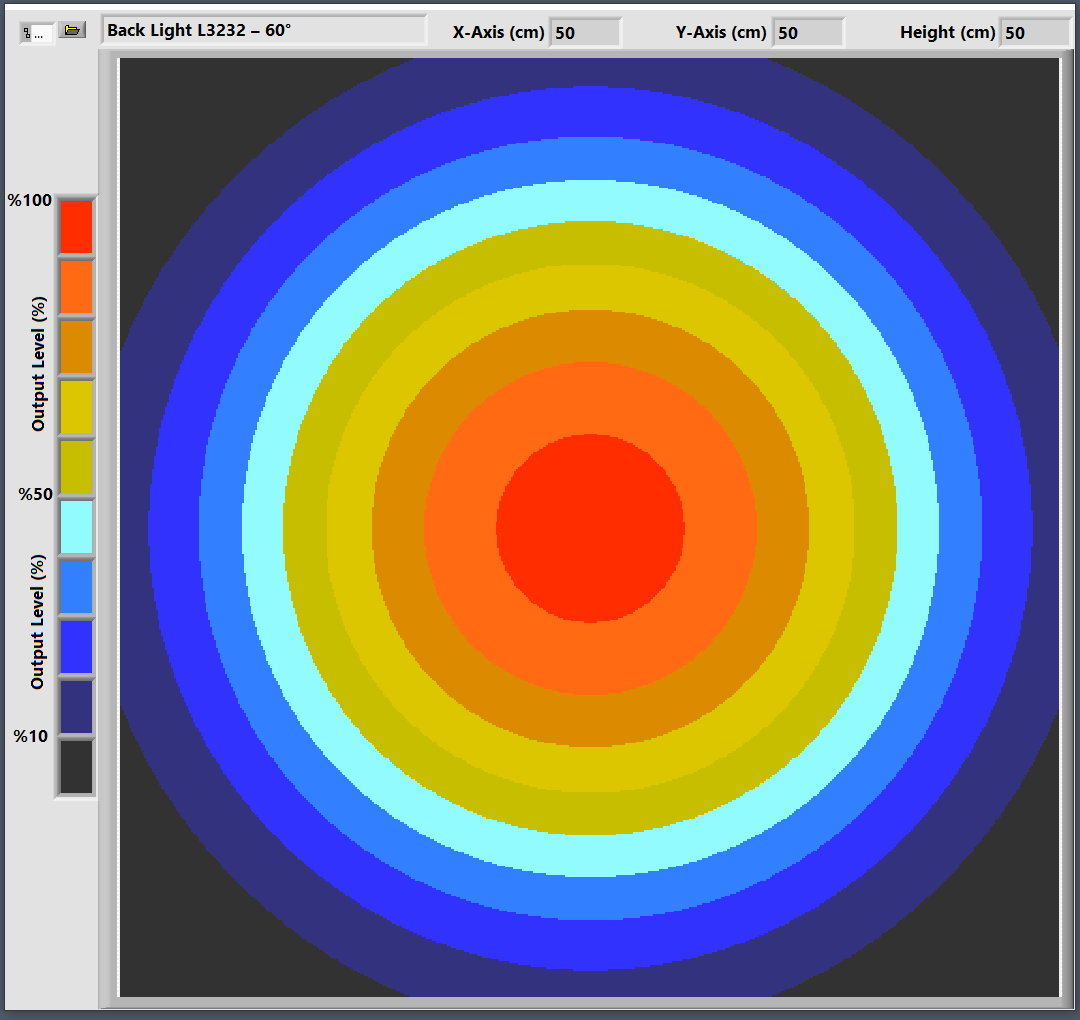

Lighting Angle: 30°, 60°
Intensity Of Illumination: 2,56 k lm
Led Number: 1024
Input Voltage: 24 V
Input Current (15 µs): 3,2 A
Input Current (1 second): 2 A
Input Current (1 minute): 1,66 A
Input Current (continuous): 1,28 A
Dimensions: 22,5 cm x 22,5 cm x 2,5 cm
At Constant Voltage Operation: Have
Diffusor Option: There Are

Backlighting is a crucial and widely employed technique in image processing projects, offering various advantages across different applications. Below, we delve into the specific areas of use and the benefits that backlighting brings to image processing projects:

1. Object Recognition and Tracking: Backlighting enhances the visibility and contrast of objects, making it an ideal choice for image processing projects involving object recognition and tracking. The improved contrast aids in accurate identification and tracking of objects within a scene.

2. Quality Inspection in Manufacturing: In manufacturing environments, backlighting is extensively used for quality inspection purposes. It provides a clear view of surface defects, ensuring that image processing algorithms can effectively identify and categorize any imperfections.

3. Document and Text Analysis: For image processing projects involving document analysis or optical character recognition (OCR), backlighting proves beneficial. It helps illuminate text, making it easier for OCR algorithms to accurately extract and interpret textual information.

4. Biomedical Imaging: In biomedical imaging applications, backlighting is employed to highlight specific features in biological samples. This aids in the analysis of cell structures, tissues, and other crucial elements in medical image processing.

5. Edge Detection and Boundary Mapping: Backlighting is instrumental in edge detection projects, where the precise delineation of object boundaries is essential. The technique enhances the visibility of edges, enabling more accurate boundary mapping.

6. Dimensional Measurement: Image processing projects that involve dimensional measurement benefit from backlighting by providing a well-defined and high-contrast view of the subject. This aids in accurately measuring the dimensions of objects within the image.

7. Security and Surveillance: Backlighting is employed in security and surveillance applications to improve the visibility of objects, particularly in low-light conditions. This is crucial for image processing algorithms tasked with detecting and analyzing security-related events.

8. Environmental Monitoring: For projects involving environmental monitoring, backlighting can enhance the visibility of specific elements within an image, such as terrain features or atmospheric conditions. This aids in the accurate analysis of environmental data.

In summary, backlighting plays a pivotal role in addressing the diverse needs of image processing projects. Its ability to improve visibility, contrast, and feature highlighting makes it an invaluable tool in applications ranging from manufacturing quality control to biomedical imaging and beyond.
