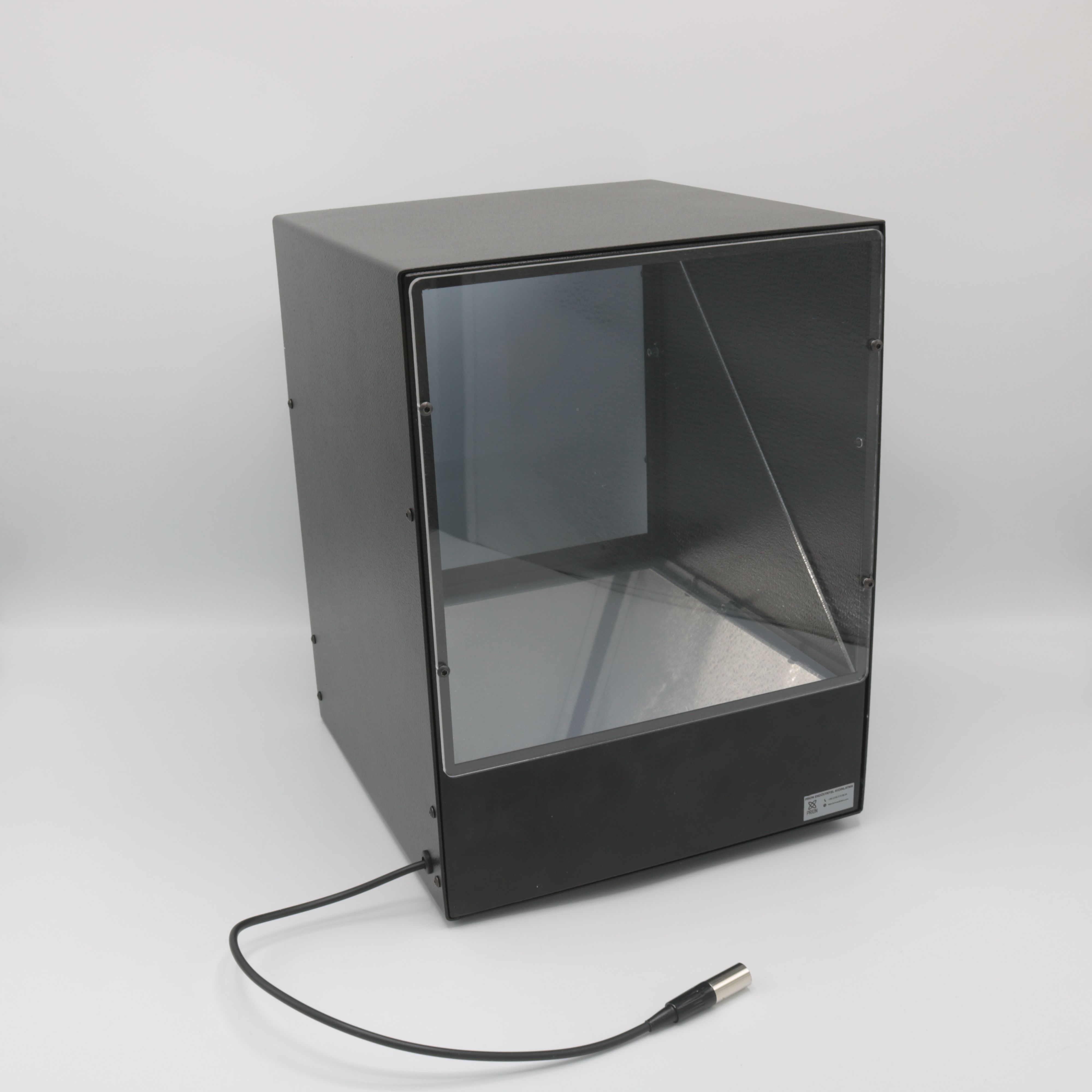

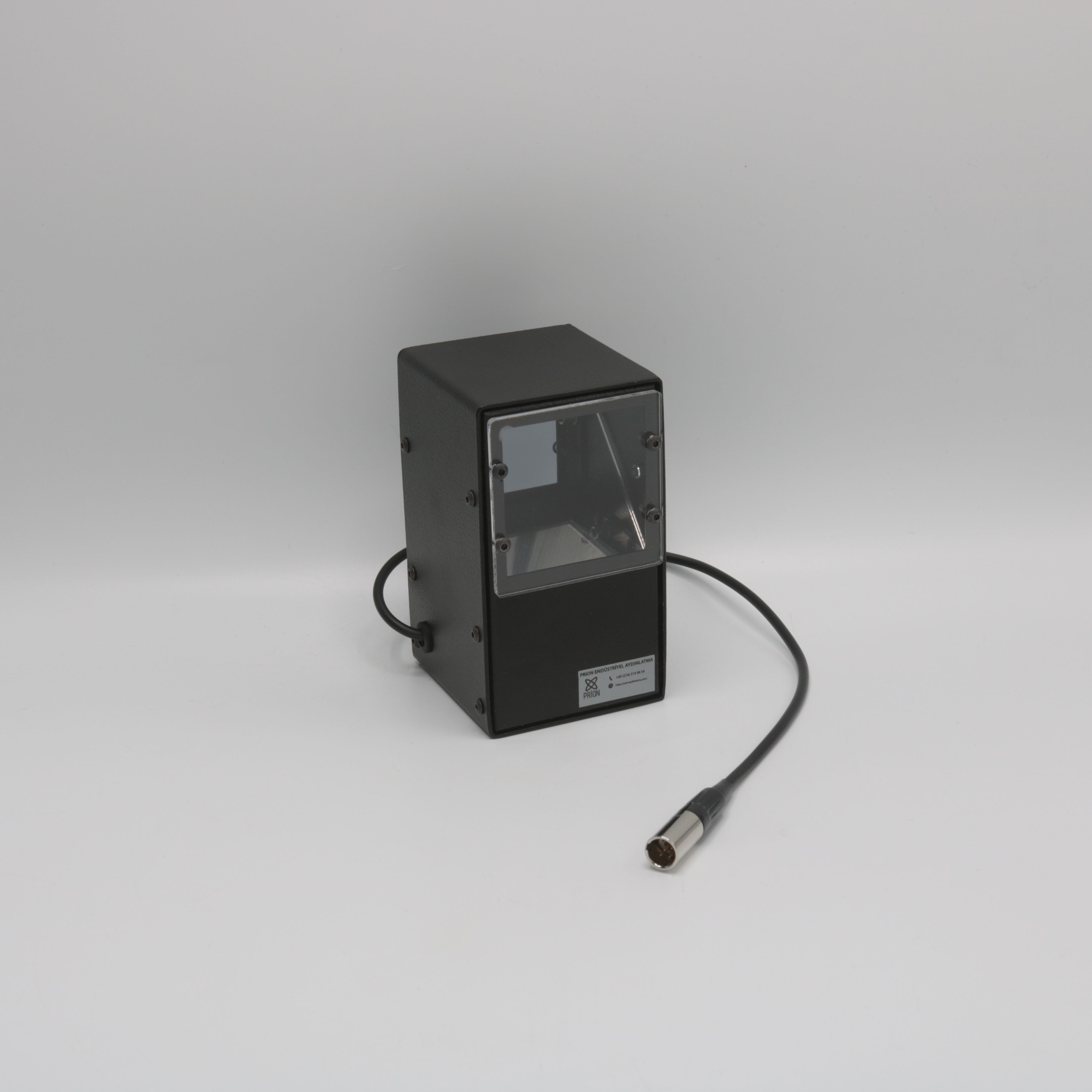

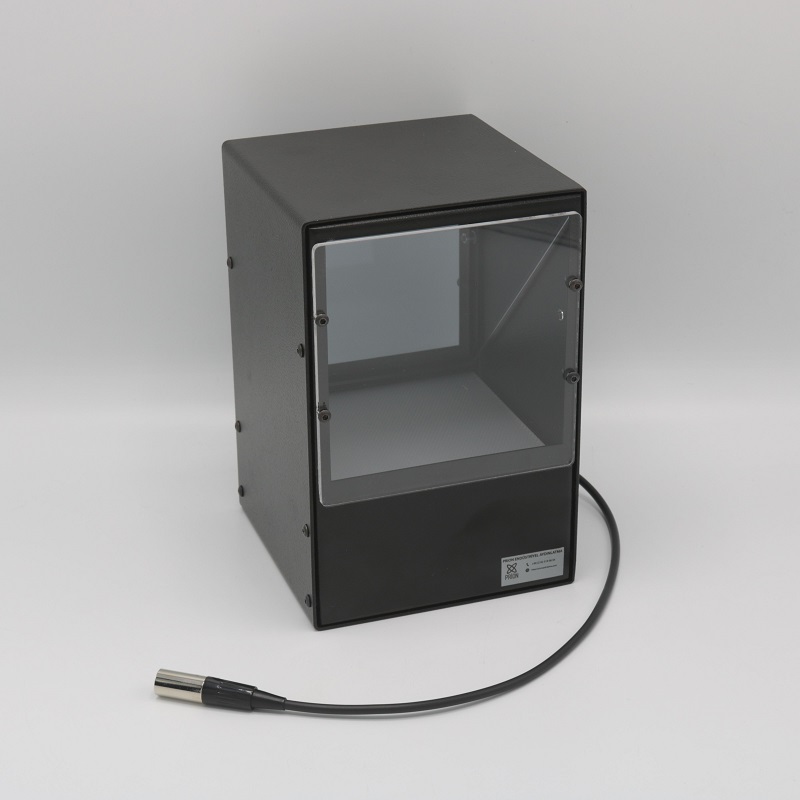

PRION COAXIAL LIGHT MACHINE VISION IMAGE PROCESSING LIGHT

Coaxial Light is a specialized illumination type used in industrial image processing systems. It directs light onto the object from the same axis as the camera, providing high contrast and uniform lighting. Thanks to the semi-transparent mirror inside, the light is projected directly onto the object while allowing the camera to capture the image from the same axis. It is particularly ideal for inspecting reflective and shiny surfaces, highlighting details such as scratches, engravings, embossing, or codes on flat and smooth surfaces.

Common applications of Coaxial Light include printed circuit board (PCB) inspections, metal and glass surface inspections, barcode and laser marking verification, and quality control processes in the pharmaceutical and packaging industries. It enables precise analysis of fine lines and solder joints on PCBs, detection of scratches or cracks on reflective surfaces, and reliable reading of engraved or etched codes.

This illumination type ensures shadow-free and uniform light distribution, making complex surface details clearly visible. The semi-transparent mirror evenly distributes the light, minimizing reflections and enhancing the visibility of surface engravings, scratches, or laser markings. Coaxial Light operates by aligning the illumination unit with the camera’s optical axis. The emitted light is directed onto the object through the semi-transparent mirror, and part of the reflected light passes back through the same mirror to the camera, resulting in high-contrast and sharp images.

In summary, Coaxial Light is an advanced imaging illumination system designed to enhance surface details and achieve high contrast on reflective surfaces. It offers significant advantages in industrial applications requiring precise surface inspection and provides a reliable solution for quality control processes.

Coaxial Light provides uniform illumination and minimizes shadows by directing light along the same axis as the camera, making it ideal for inspecting reflective, shiny, or transparent surfaces. It is widely used in applications such as PCB inspection for detecting soldering defects and component alignment errors, automotive industry for inspecting reflective metal parts and smooth surfaces, glass and plastic industries for identifying surface defects like scratches and bubbles, packaging and labeling for checking print quality on glossy surfaces, and the medical and pharmaceutical sector for inspecting the surface quality of bottles, ampoules, and blister packs. By aligning the light source with the camera's axis, it ensures high contrast imaging and enhances the visibility of fine details, particularly on reflective or glossy surfaces. Coaxial Light’s precise illumination offers high performance in various industries, improving the accuracy and reliability of machine vision systems in challenging inspection environments.
